Plumbing Components Photo PNG Collection

A collection of 34 transparent PNG plumbing components in a consistent photographic style. Includes copper and PEX tubing, flexible hoses, supply fittings, PVC drainage connections, valves, a four-outlet manifold, a float valve and an unnumbered pressure gauge. Use the isolated components in plumbing service graphics, renovation presentations, parts comparisons and photo collages.

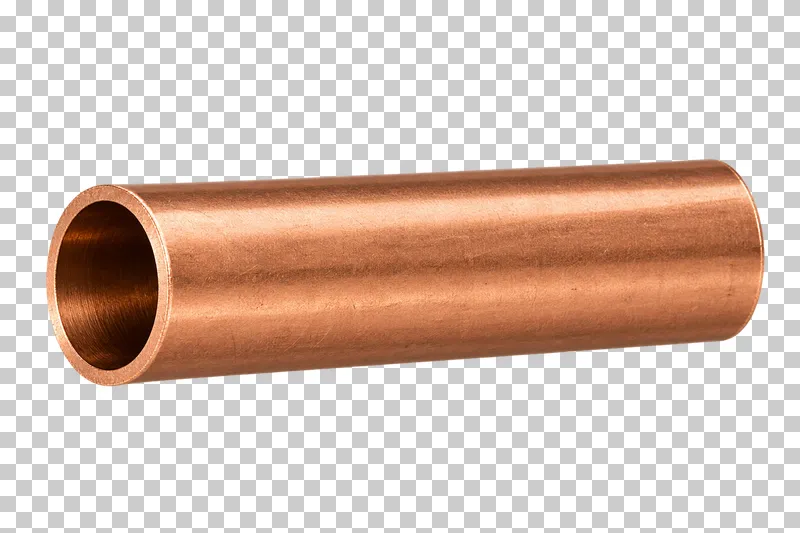

  • A short unmarked copper tube with two clean open ends and visible wall thickness.

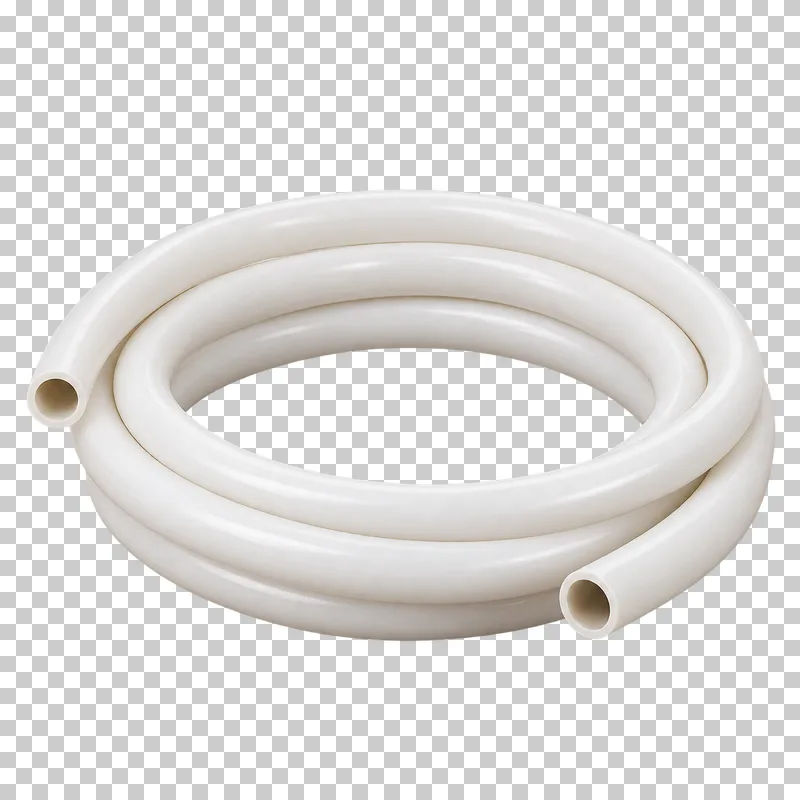

  • A loosely coiled white PEX tube with two visible ends, no printed markings or ties.

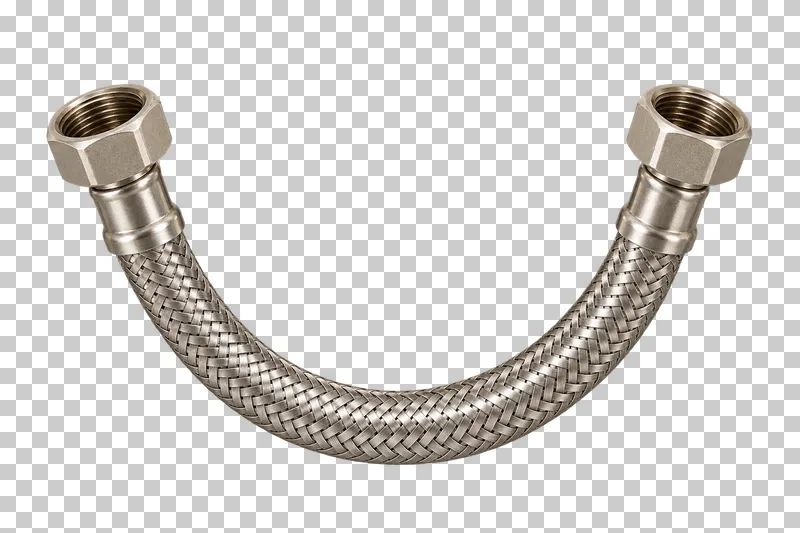

  • A stainless-braided flexible hose in a shallow U, with coherent swivel nuts at both ends.

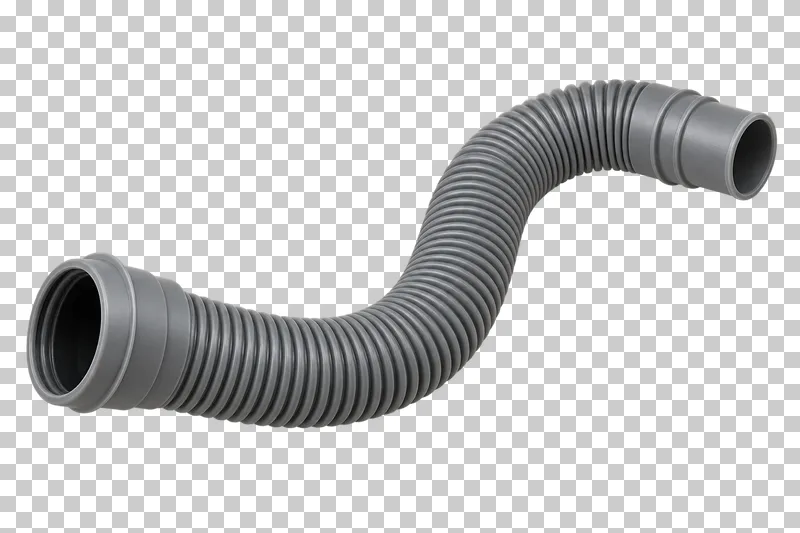

  • A gray corrugated appliance drain hose, loosely curved, with its molded end cuffs.

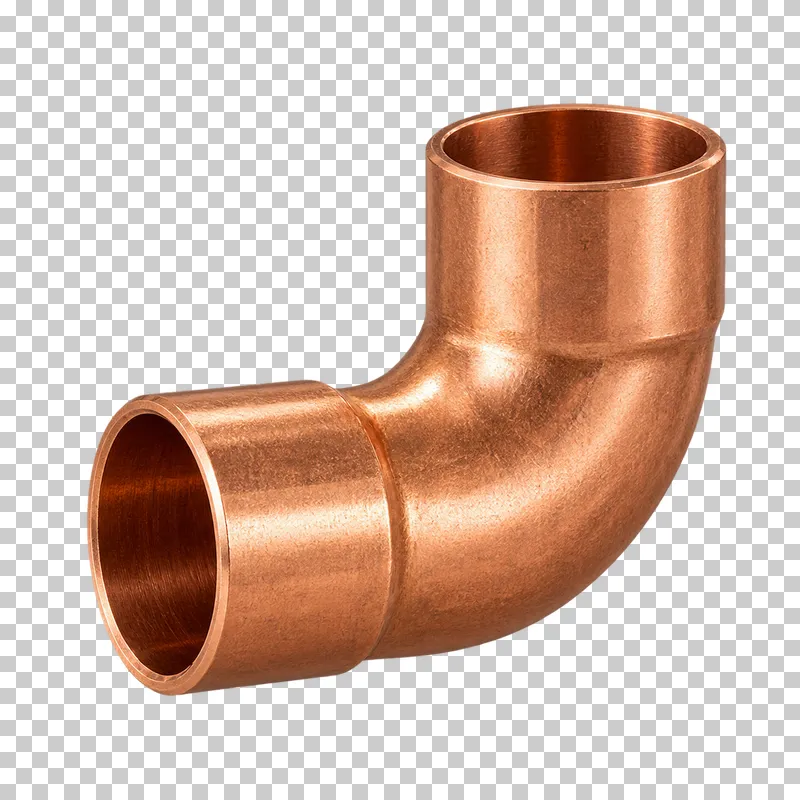

  • A copper solder-socket 90-degree elbow with two clear sockets and a continuous bend.

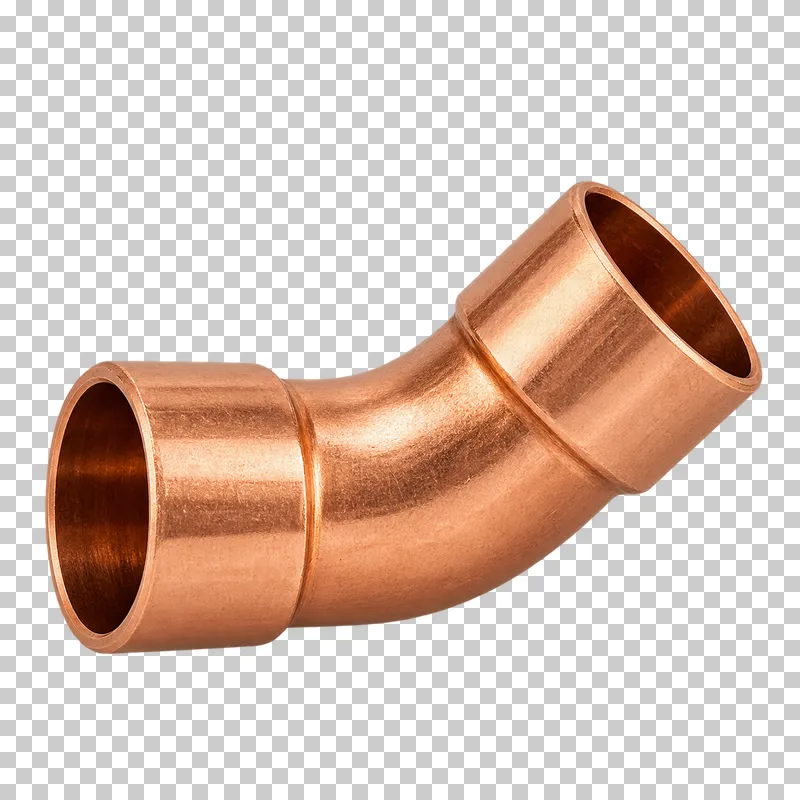

  • A copper solder-socket 45-degree elbow with a visibly shallower bend.

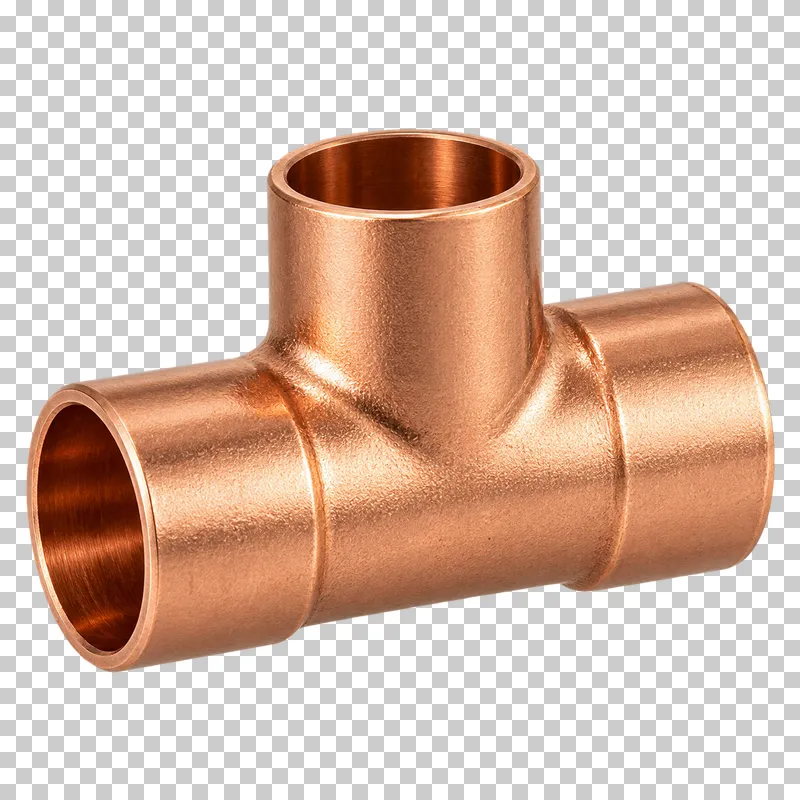

  • A copper solder-socket tee with three equal-diameter sockets and a coherent junction.

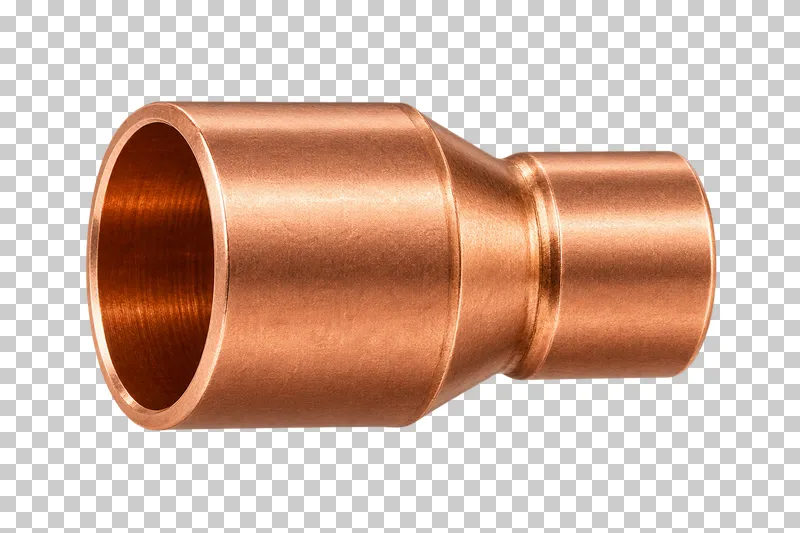

  • A copper socket coupling stepping from a wider opening to a narrower opening on a shared axis.

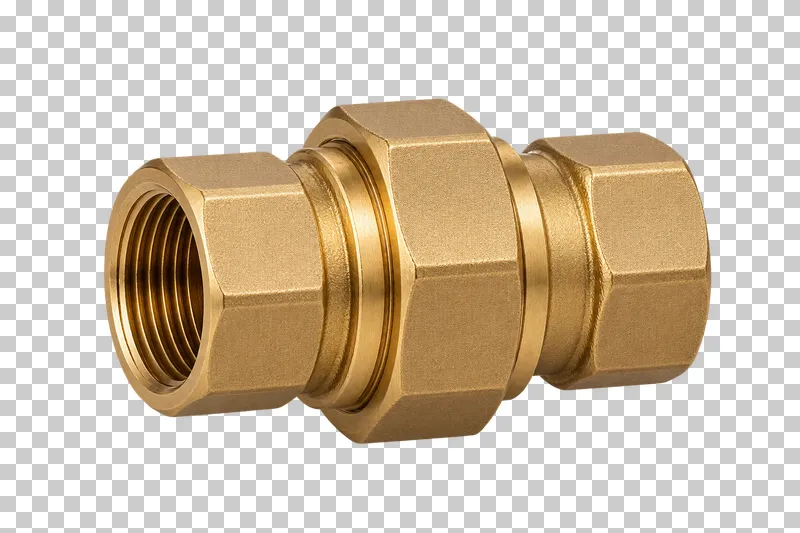

  • A complete brass pipe union with its large central hexagonal union nut and aligned end connections.

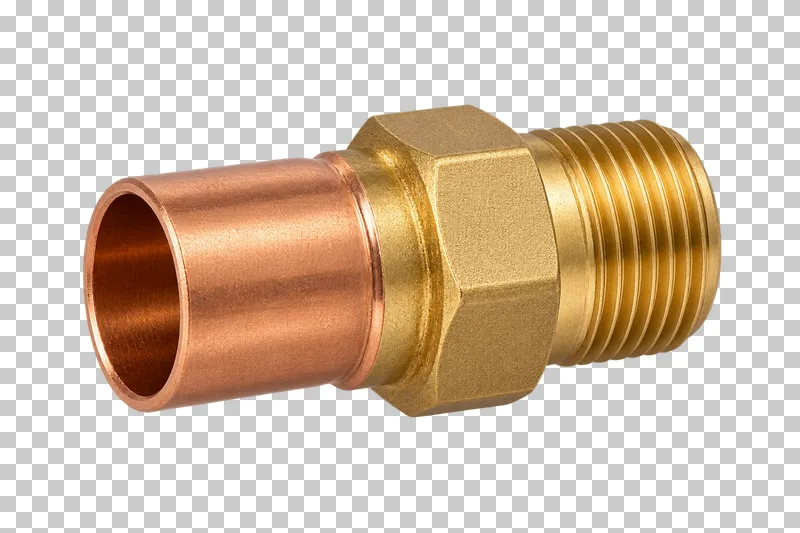

  • A adapter with a copper solder socket and a brass male-threaded end separated by wrench flats.

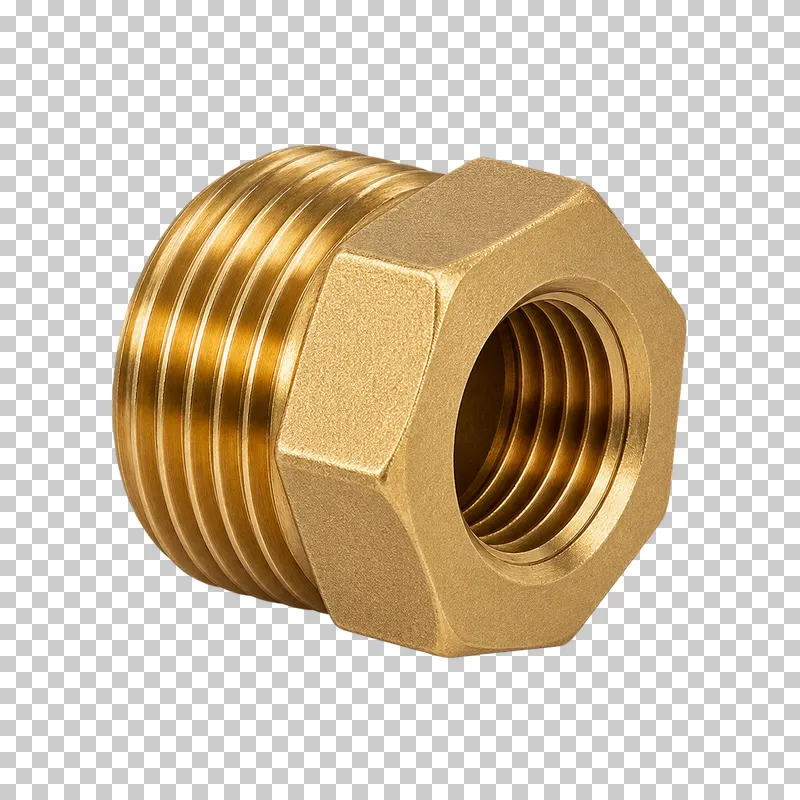

  • A brass hexagonal bushing with external male threads and a smaller internal threaded opening.

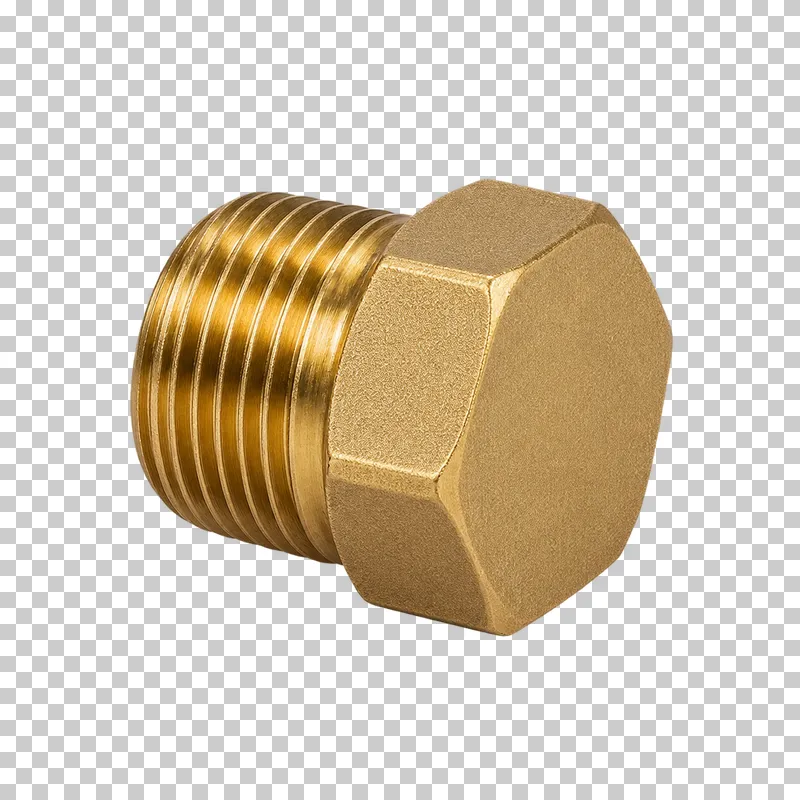

  • A brass male-threaded blanking plug with a solid hexagonal head and closed end.

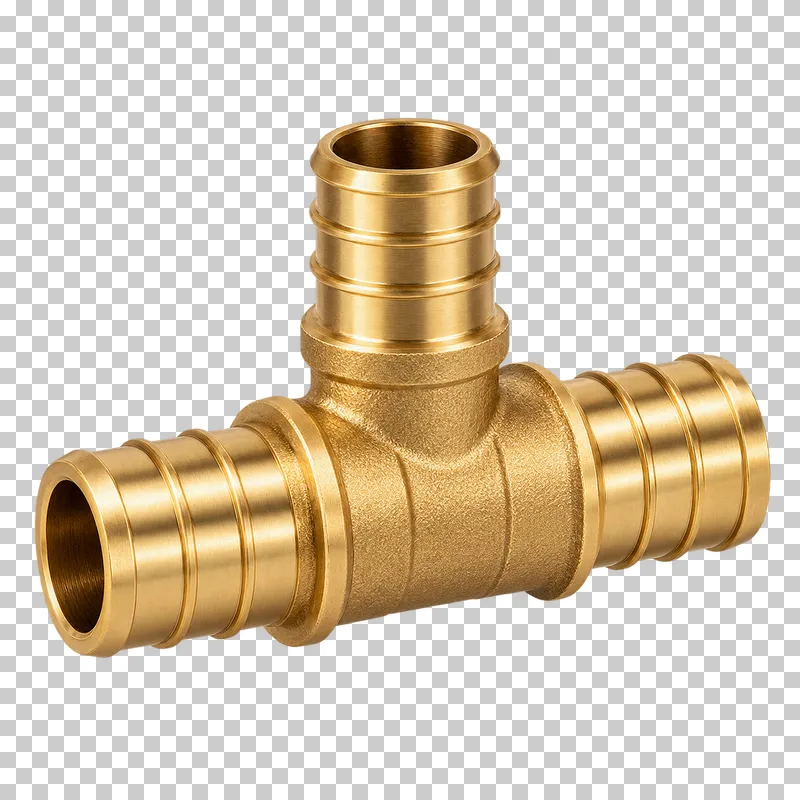

  • A brass three-way PEX tee with three visible barbed ends, no attached pipe or loose rings.

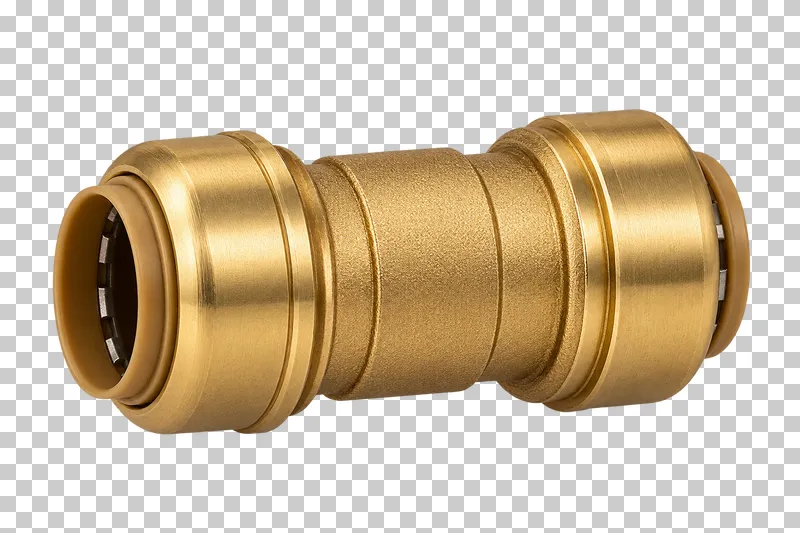

  • A generic brass straight push-fit coupling with two engineered collar mouths, no logo or distinctive brand styling.

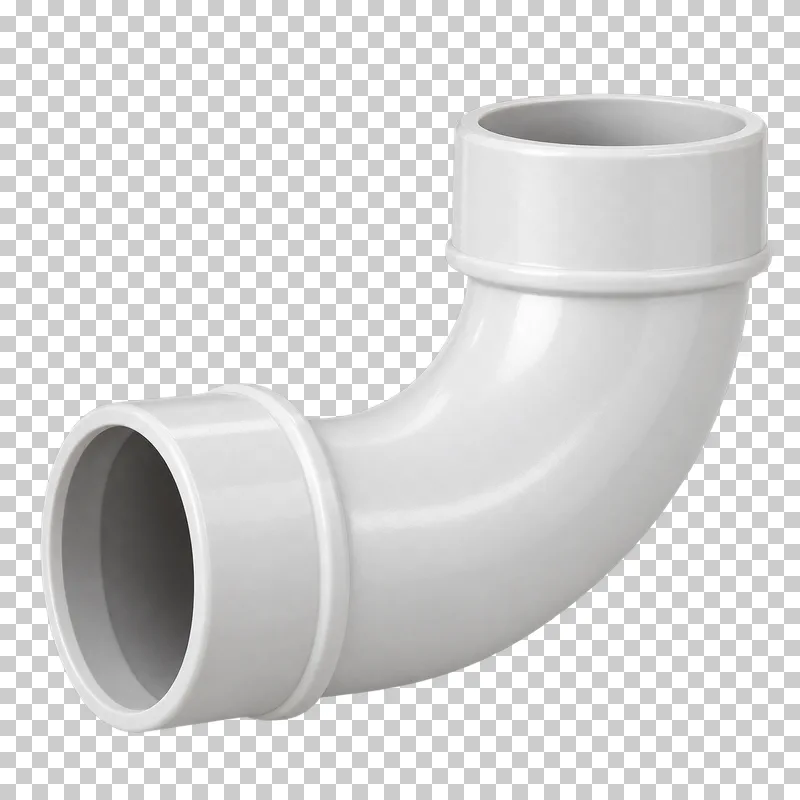

  • A white PVC long-sweep 90-degree drainage elbow with visibly enlarged socket ends and a long smooth radius.

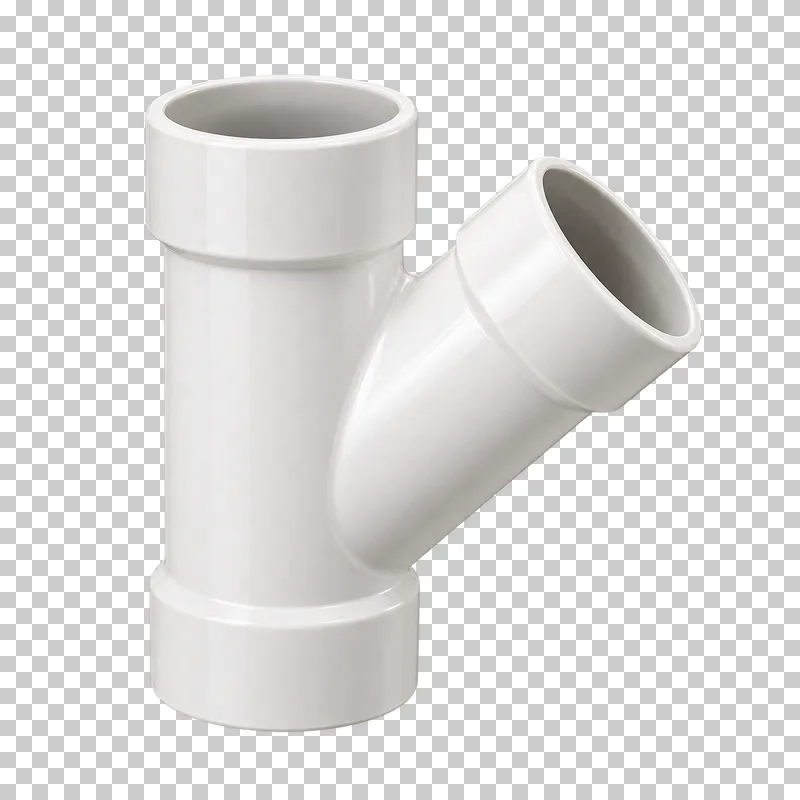

  • A white PVC wye with a straight main run and one clearly angled branch, three open sockets.

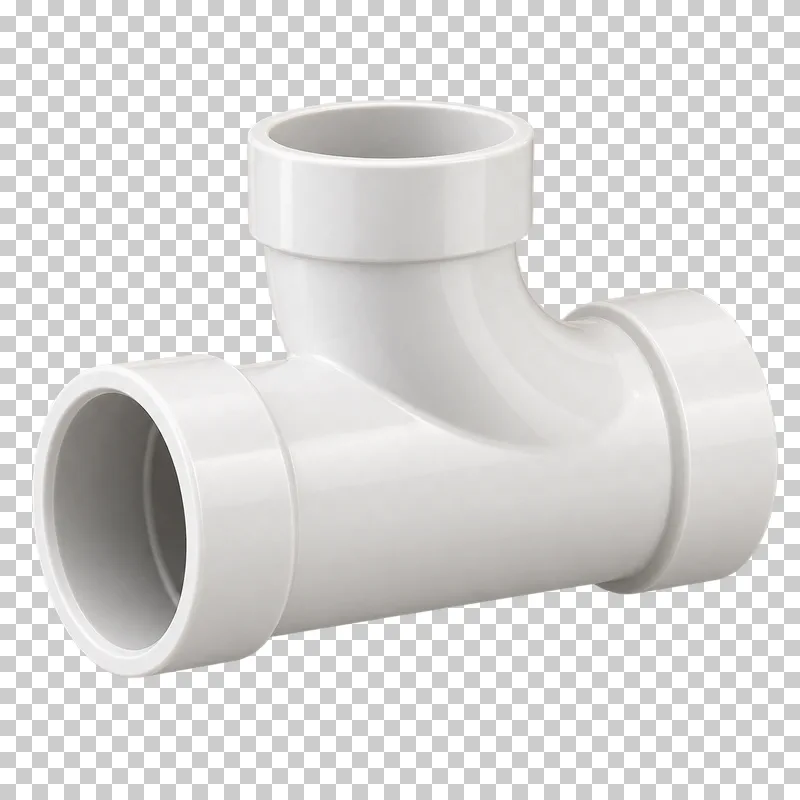

  • A white PVC sanitary tee with a swept branch entering a straight main run, three open sockets.

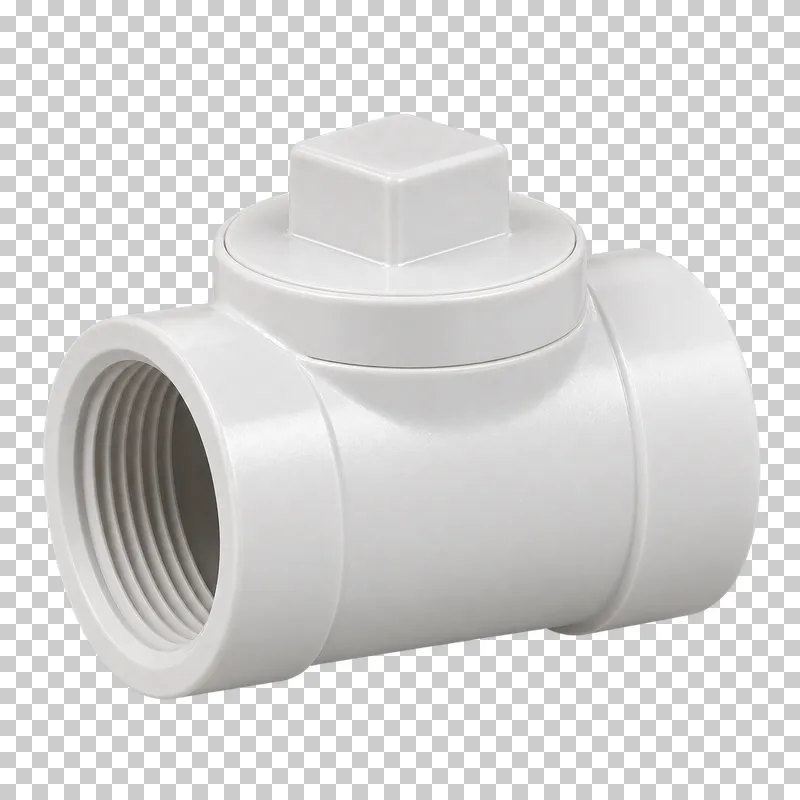

  • A white PVC cleanout adapter with its seated removable square-head threaded plug.

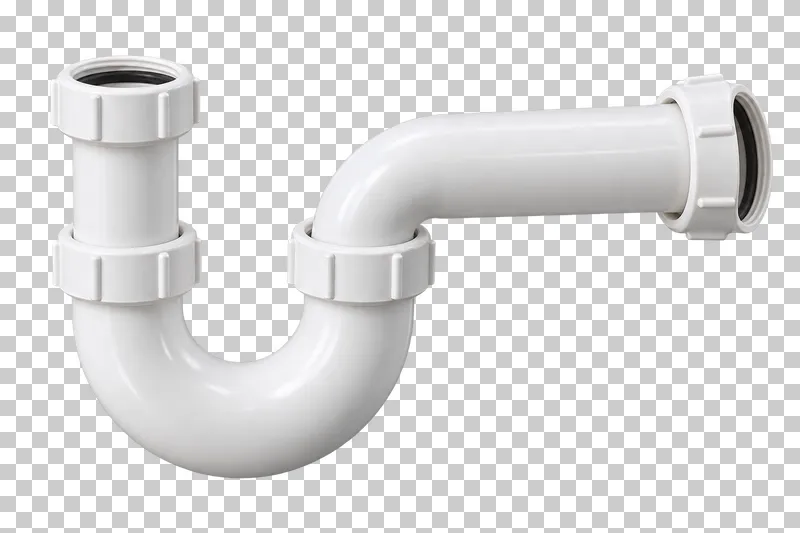

  • A complete white plastic tubular P-trap, U-bend, trap arm and slip nuts, with coherent continuous passages.

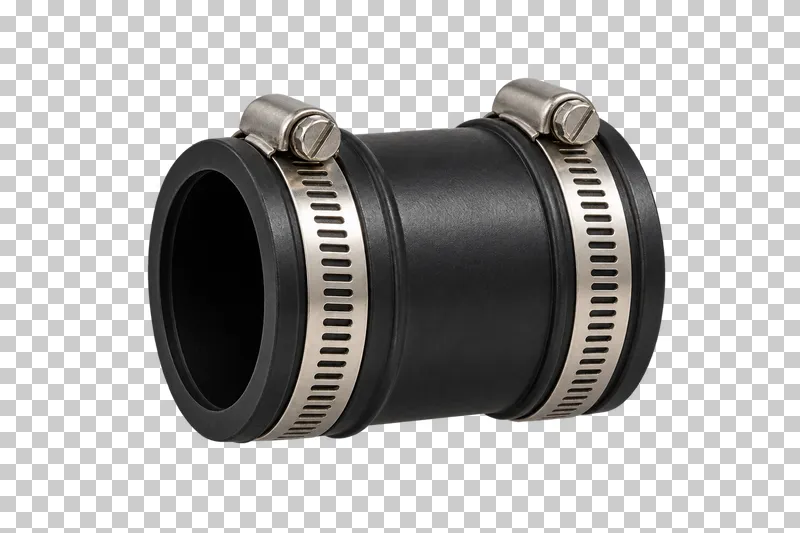

  • A short black rubber drain coupling with two integral stainless worm-drive bands, open ends and no pipe.

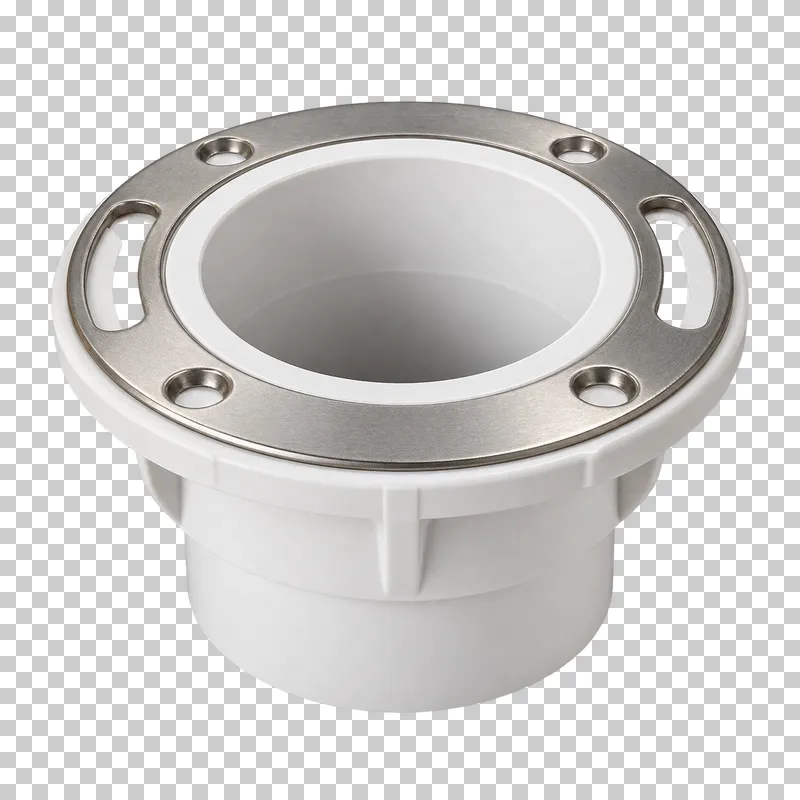

  • A white PVC closet flange with a metal mounting ring, center pipe opening and visible bolt slots, no fasteners.

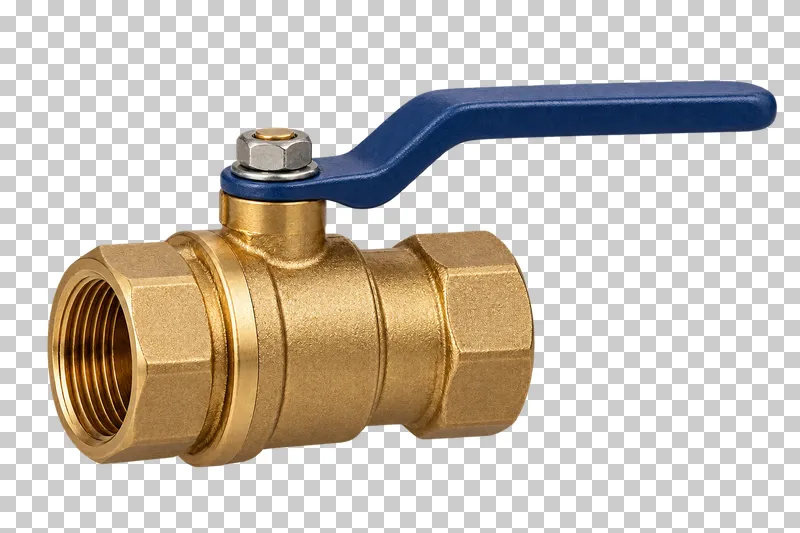

  • A complete generic brass inline ball valve with two female-threaded ports and a single matte dark-blue lever parallel to the body.

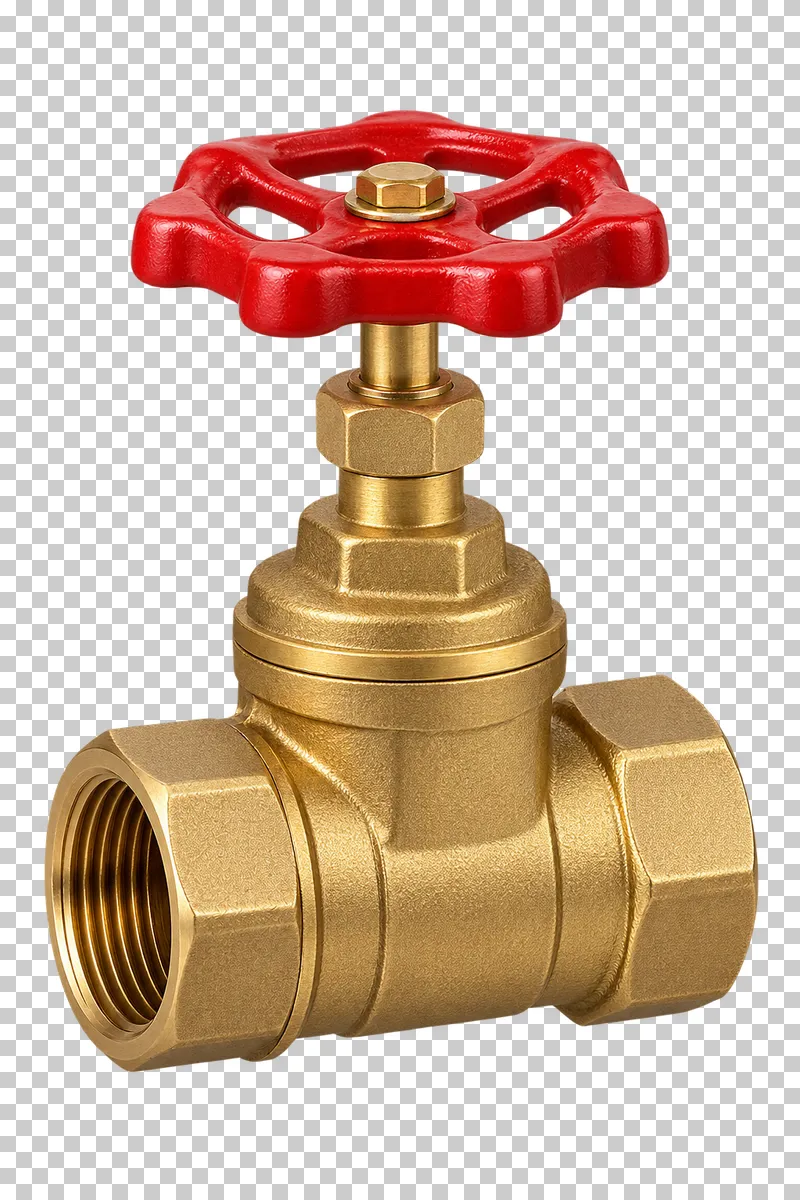

  • A complete brass inline gate valve with a raised bonnet, stem and circular red handwheel.

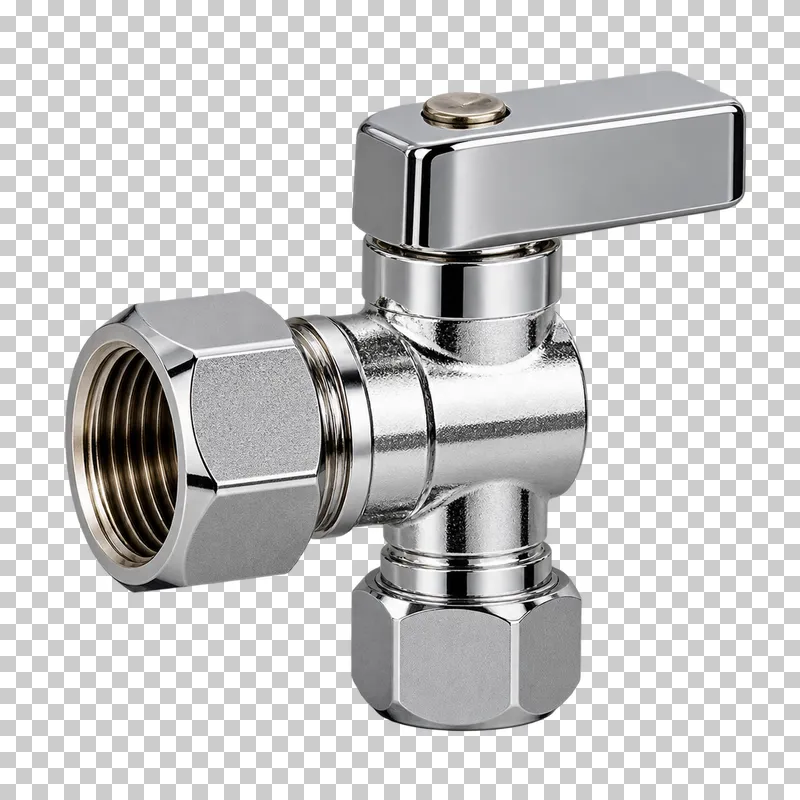

  • A chrome-plated angle stop valve with perpendicular inlet and outlet, compact handle and compression nut.

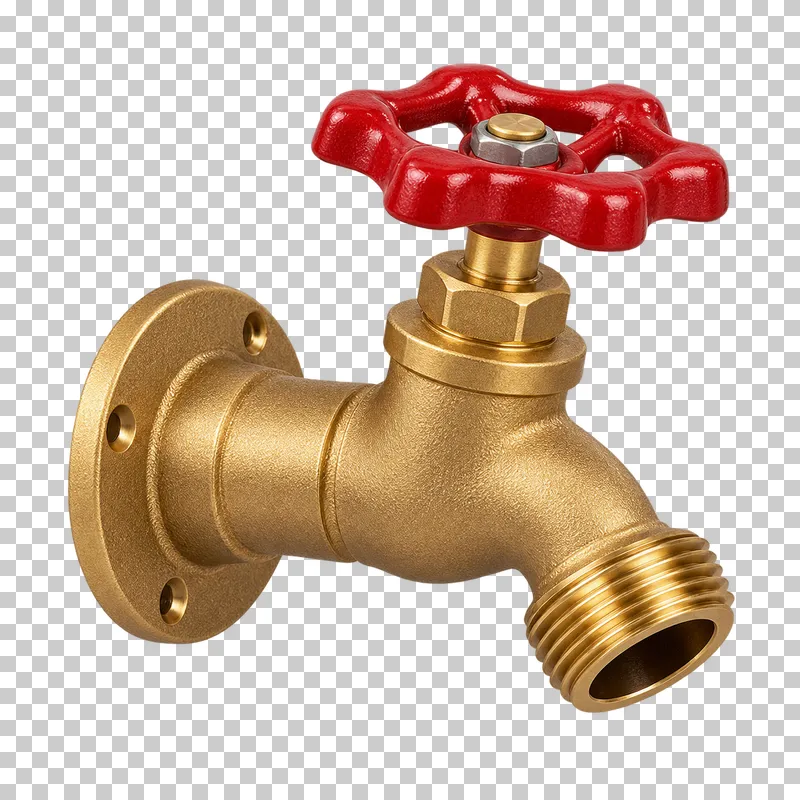

  • A brass wall hose bib with a back inlet, angled threaded hose outlet and attached handwheel.

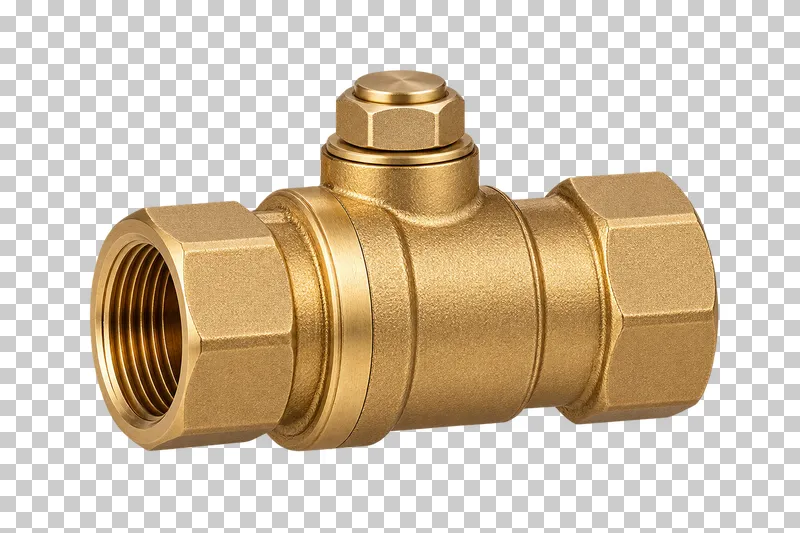

  • A brass inline check valve with a central service cap, two aligned threaded ports and no inscriptions.

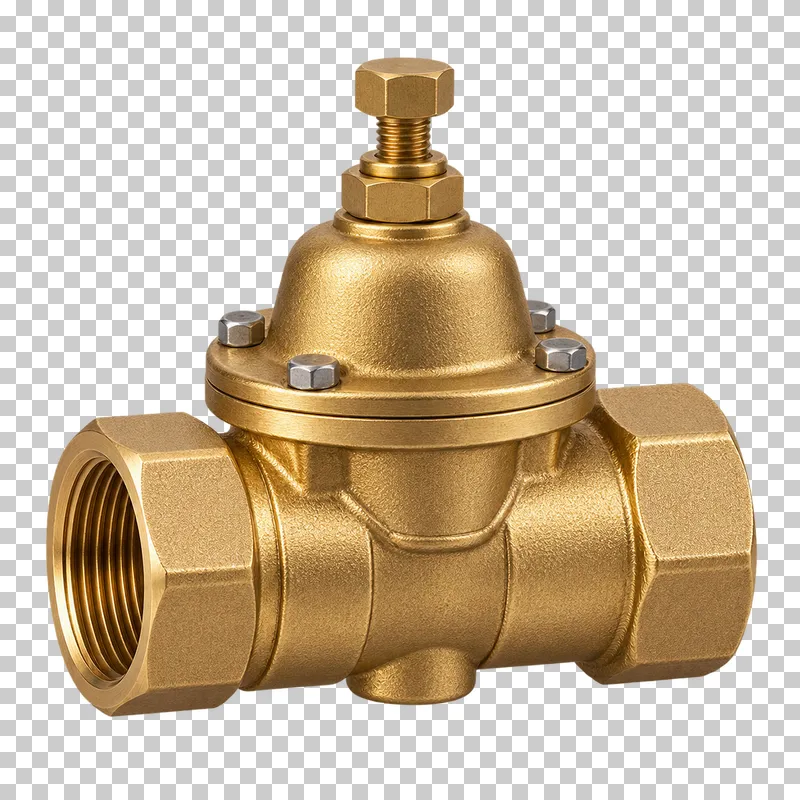

  • A compact brass pressure-reducing valve with a domed spring housing and top adjustment screw, aligned pipe ports.

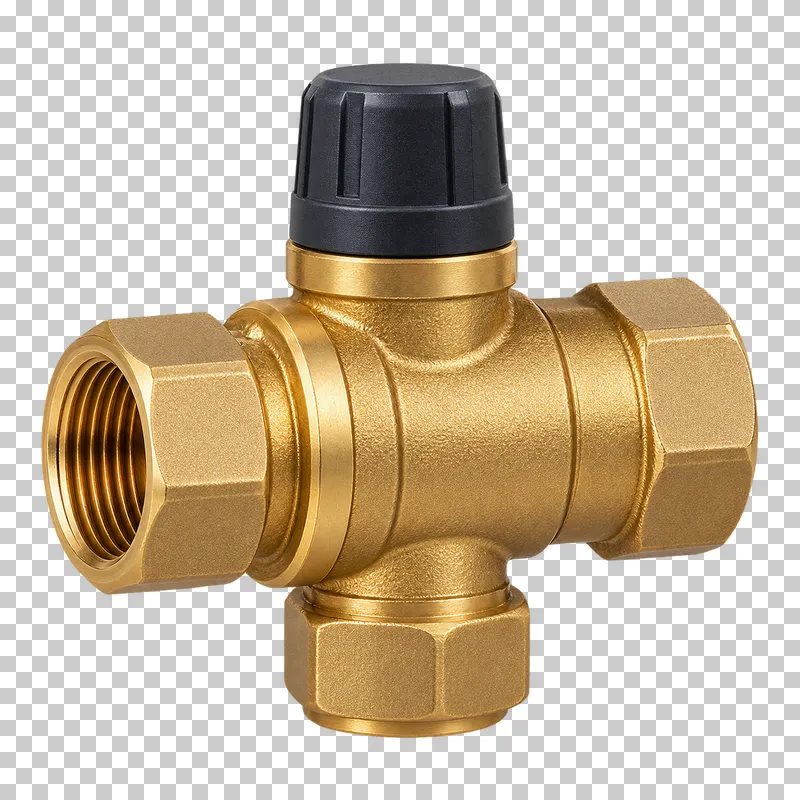

  • A generic brass three-port thermostatic mixing valve with a compact dark adjustment cap, no labels or numbers.

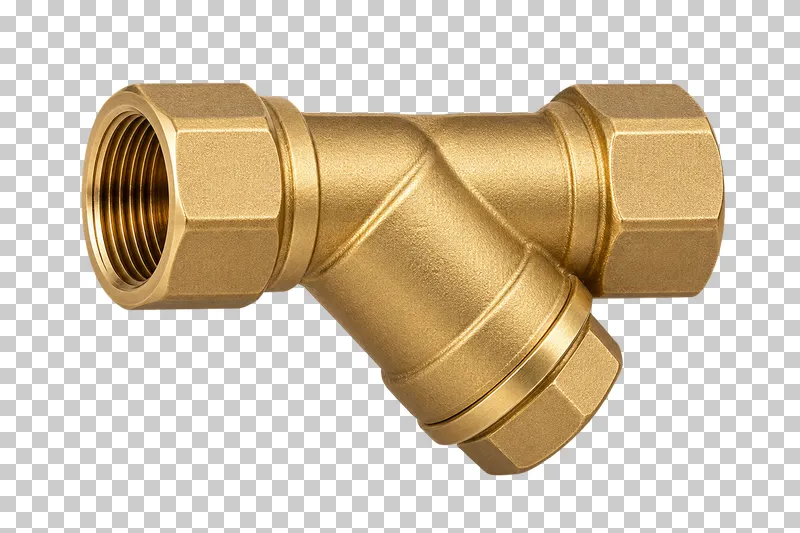

  • A brass Y-strainer with two aligned threaded ports and an angled filter chamber with its integral cap.

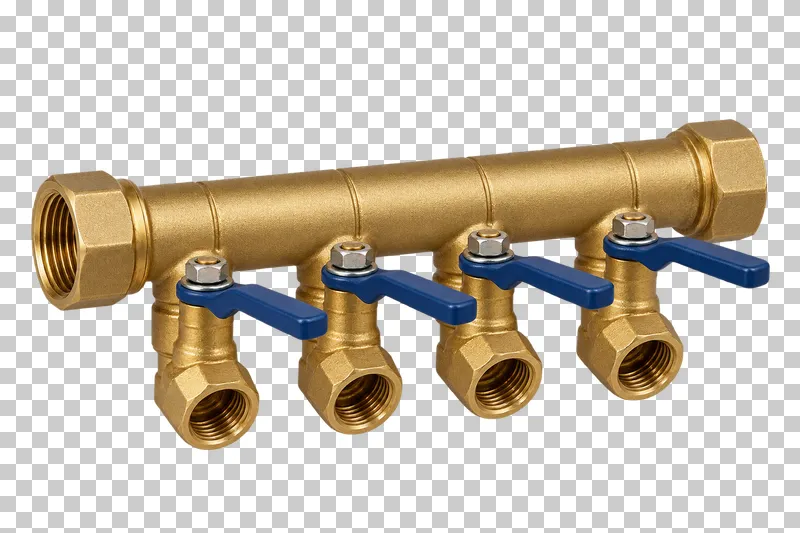

  • A horizontal brass water manifold with exactly four downward valved branches and four compact matched handles, complete main ends.

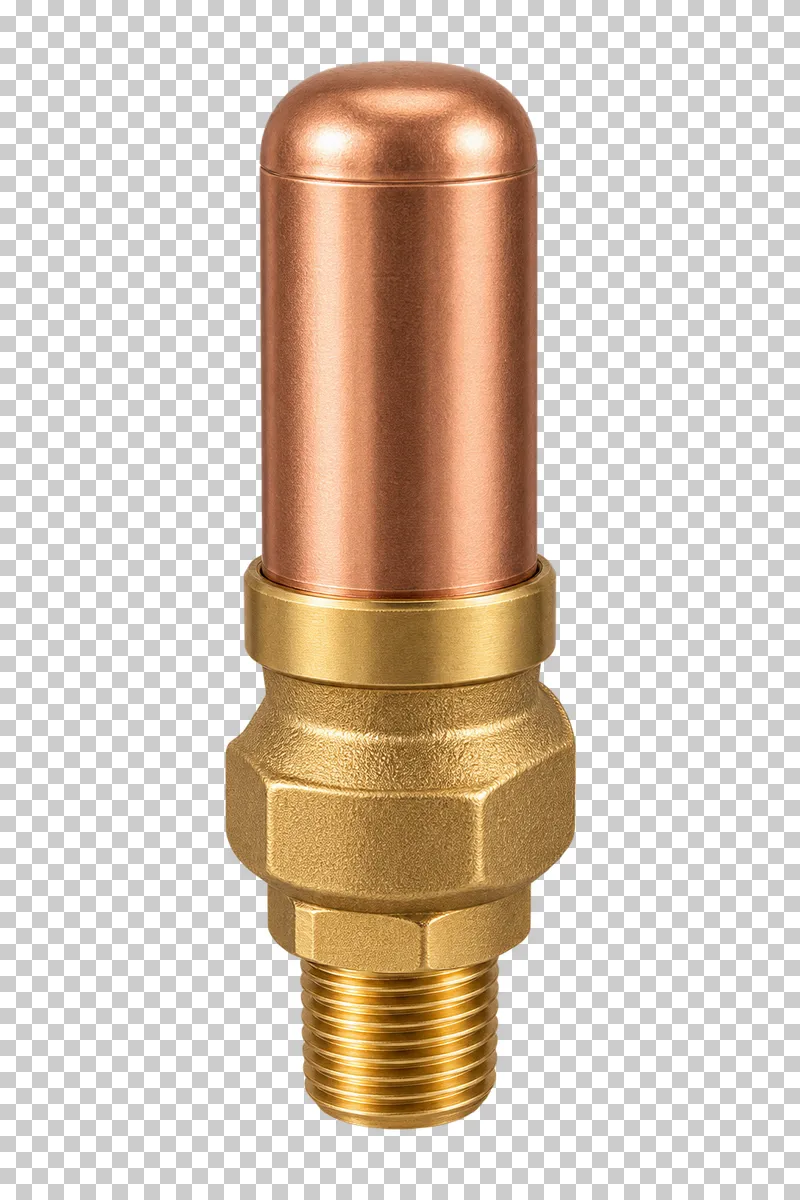

  • A compact water hammer arrestor with a cylindrical capped chamber and a single lower threaded fitting.

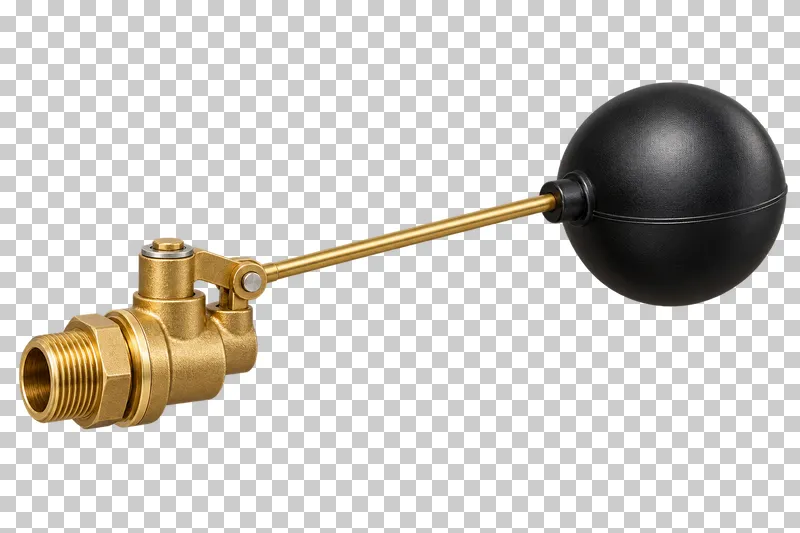

  • A complete generic brass float valve with a connected straight metal arm and a single hollow black float ball.

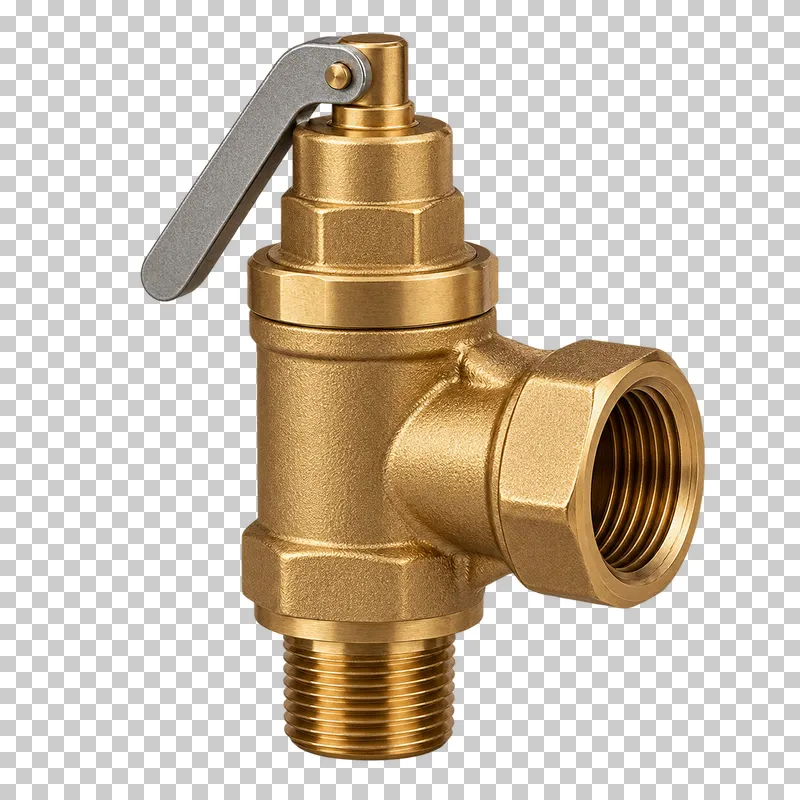

  • A brass pressure-relief valve with a top spring bonnet, a single small test lever and an angled discharge port.

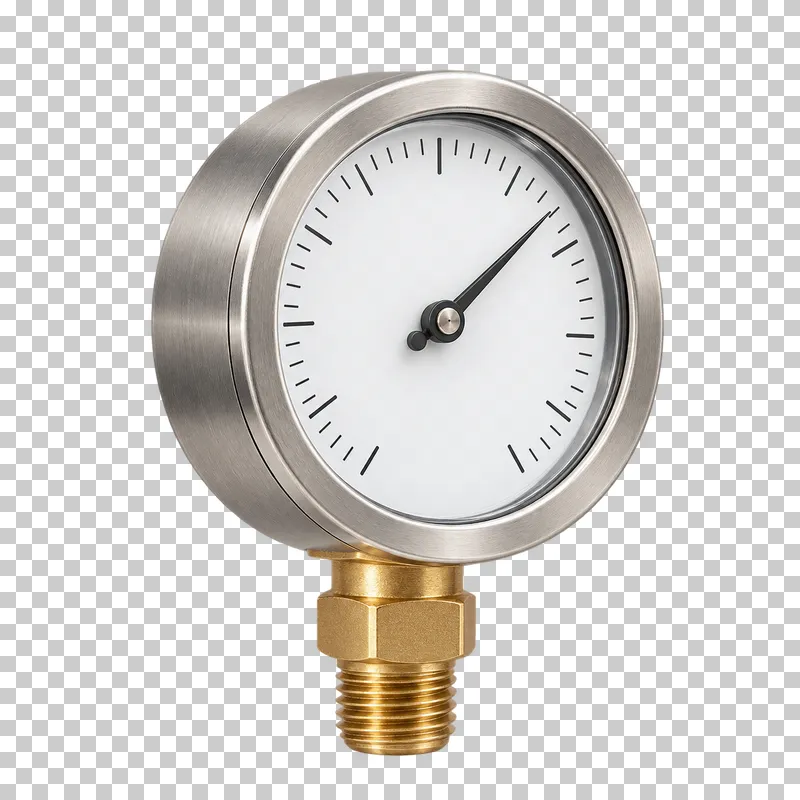

  • A compact round pressure gauge with brushed metal bezel, white face, a single black needle, fine unnumbered tick marks and one bottom brass threaded stem.
