Isometric Network Infrastructure PNG Collection

Build your own infrastructure illustrations with 32 separate isometric PNGs on transparent backgrounds. The collection contains four groups of eight: network devices, servers and storage, connections and rack mounting, and power and service tools. It includes Wi-Fi and mesh hardware, switches, servers, a four-bay NAS, empty and populated rack cabinets, patch panels, complete cables, fiber components, a UPS, a PDU and a slide-out rack console. Each object keeps its recognizable construction in a simplified matte 3D style, with a consistent elevated three-quarter view and a navy, light gray and turquoise palette. Use the individual objects in network diagrams, infrastructure guides and technology layouts. Download the PNGs at their native resolutions, individually or together in one ZIP.

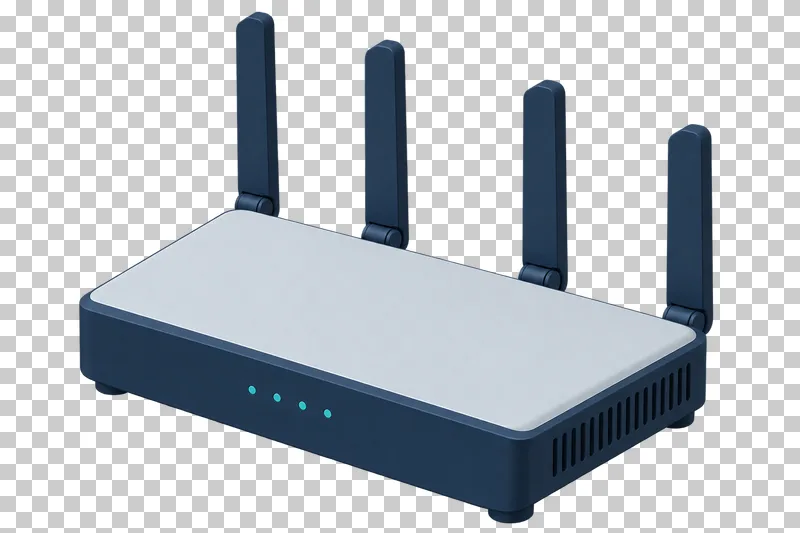

  • An isometric navy and light gray Wi-Fi router with four upright antennas.

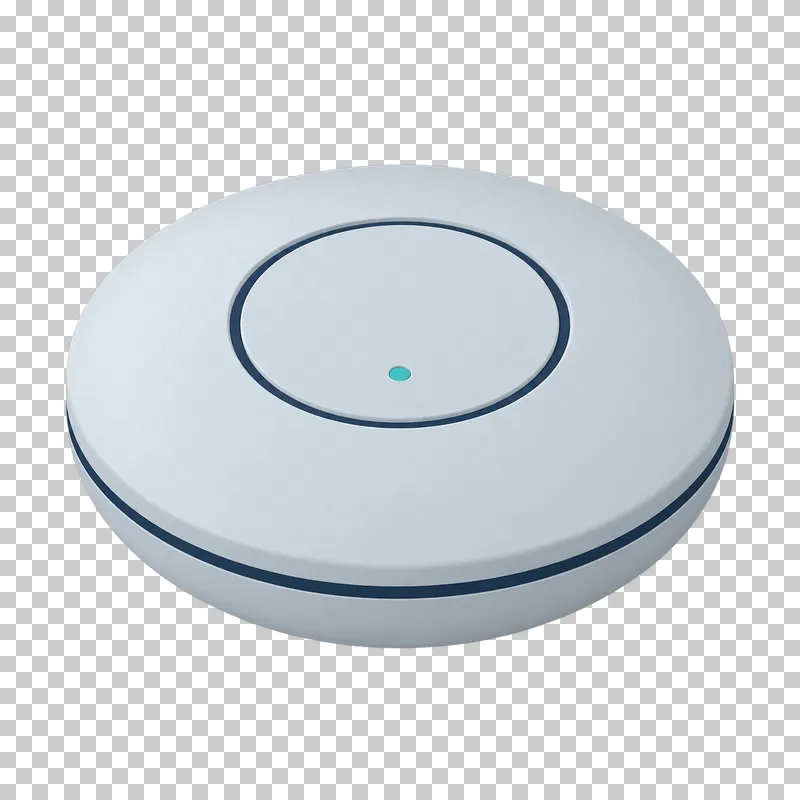

  • A round light gray ceiling access point with a recessed circular panel and a small turquoise indicator.

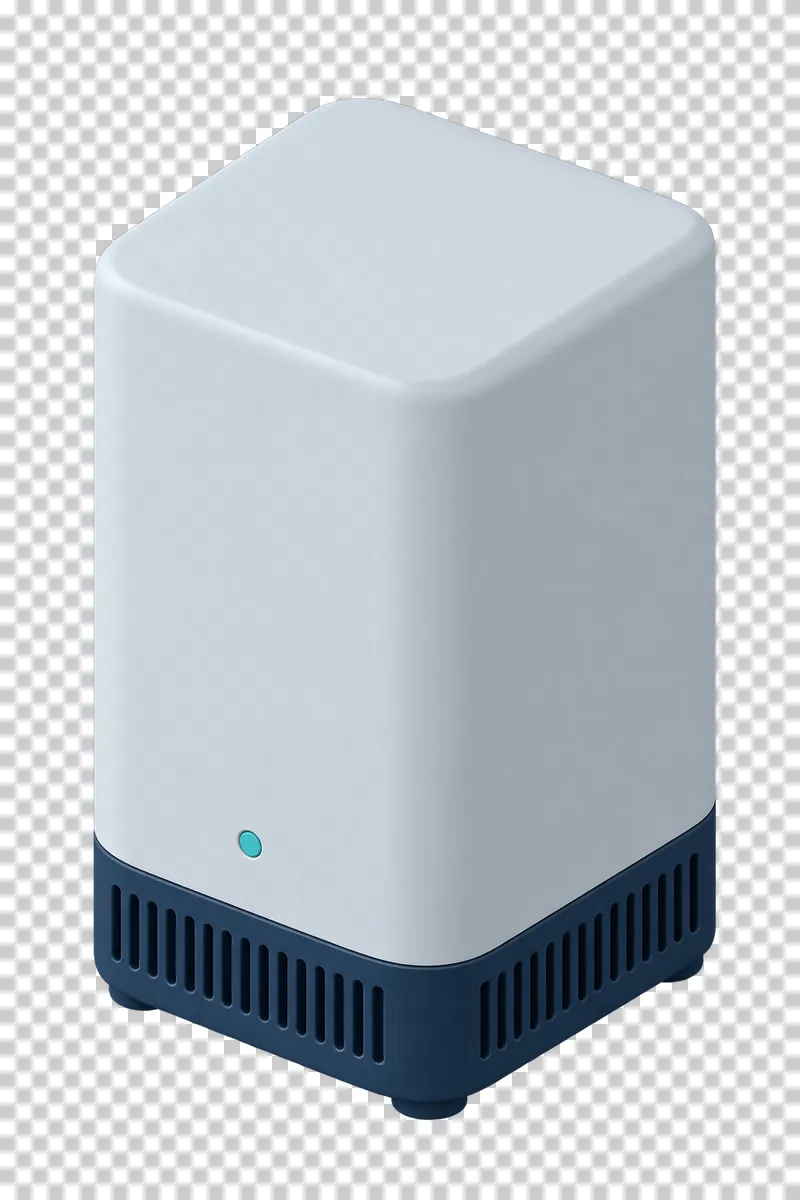

  • An upright light gray mesh network node with a navy vented base.

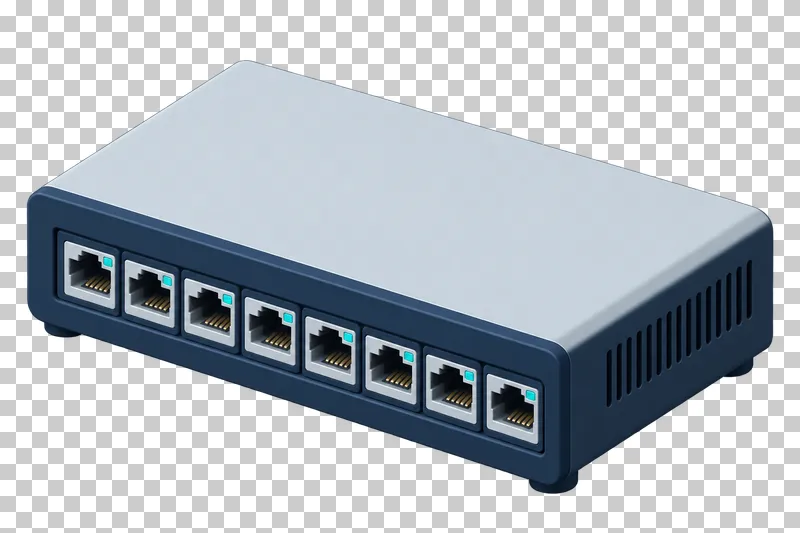

  • A compact network switch with eight evenly spaced Ethernet ports across its navy front.

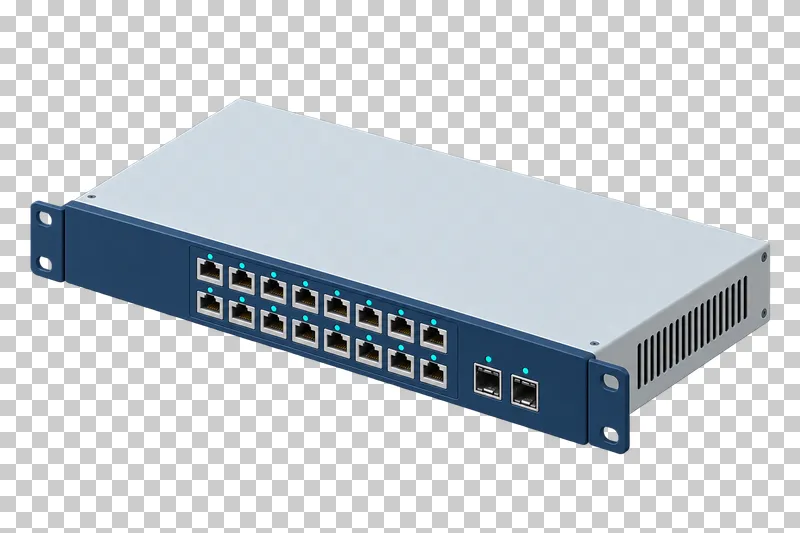

  • A rack network switch with two regular rows of Ethernet ports, optical module sockets and mounting ears.

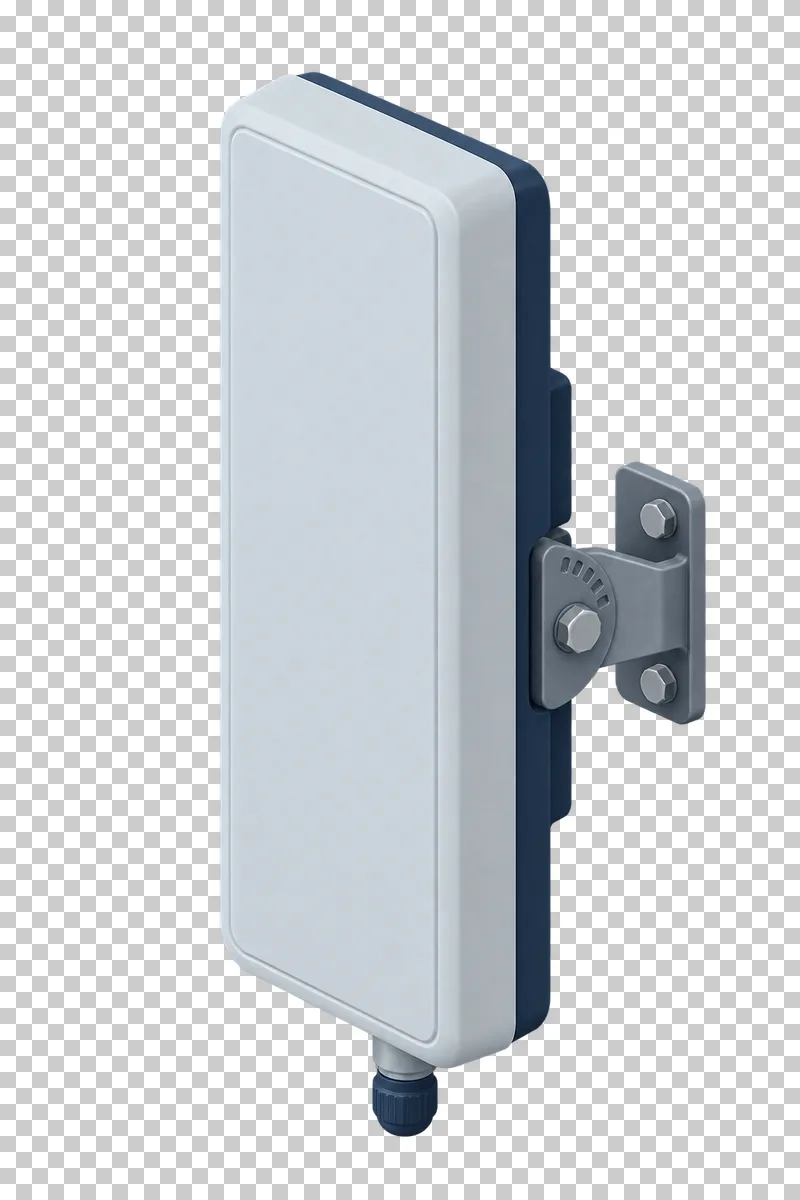

  • A tall light gray outdoor directional antenna with a navy edge and rear mounting hardware.

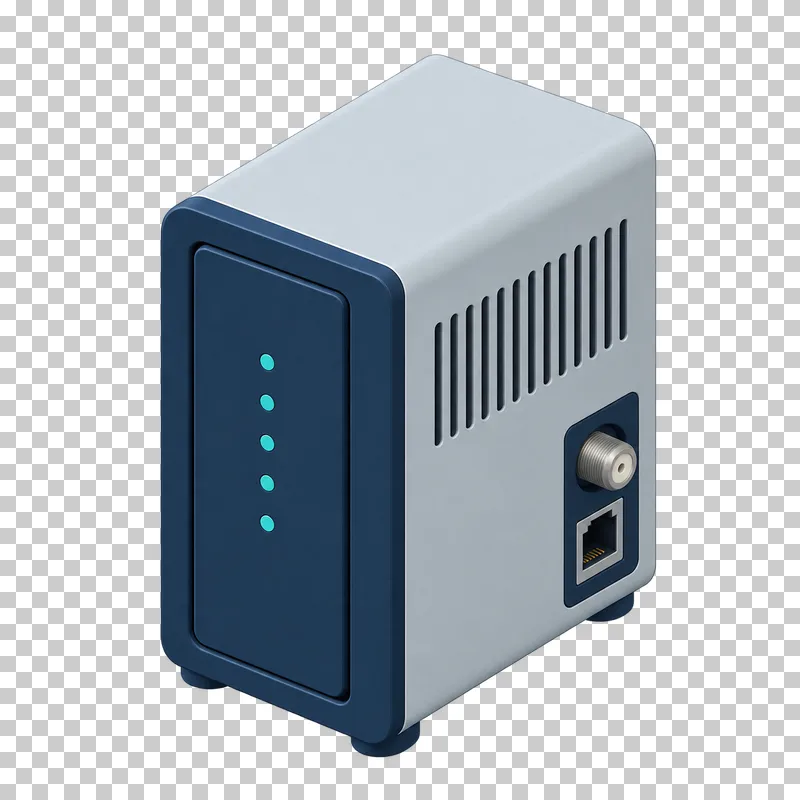

  • An upright navy and light gray modem with side vents, connection ports and small indicator lights.

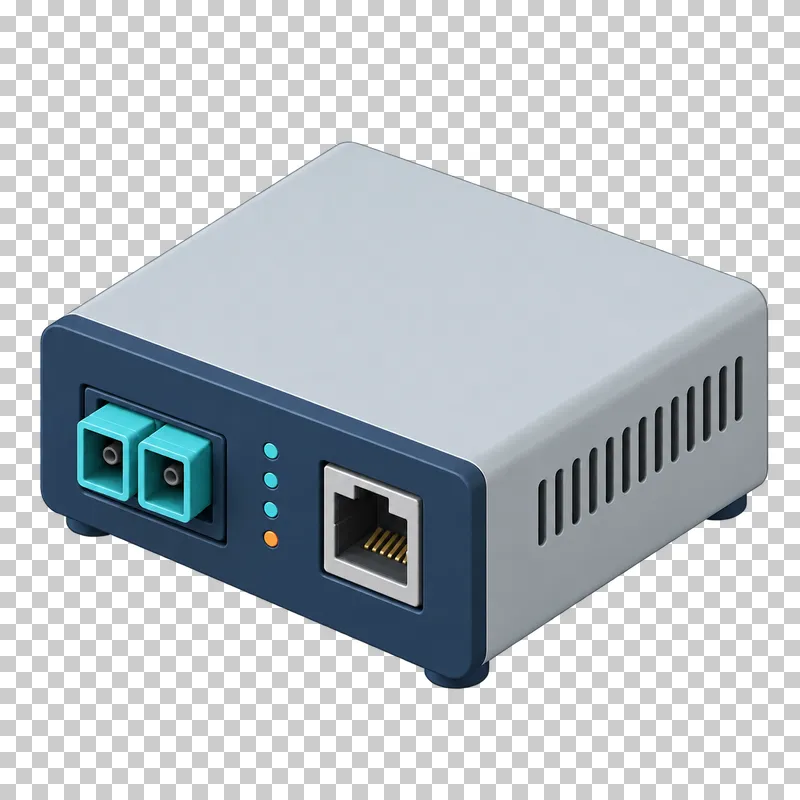

  • A compact light gray fiber media converter with green optical sockets, an Ethernet port and side vents.

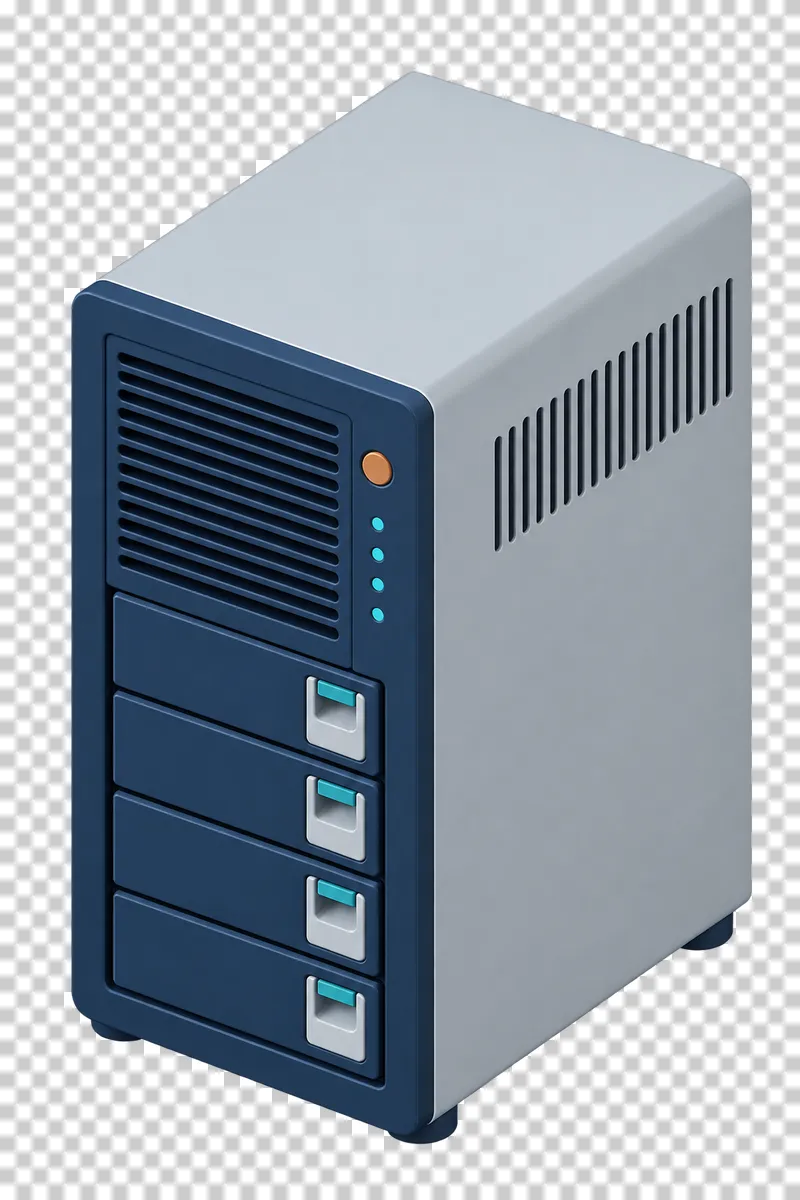

  • An isometric tower server with a navy front grille, stacked drive trays and a light gray enclosure.

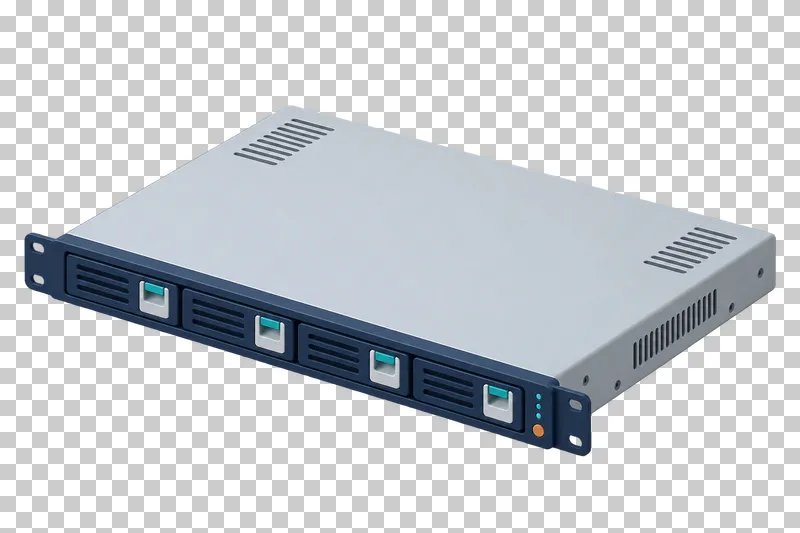

  • A thin 1U rack server with a navy front, drive trays, small ports and mounting ears.

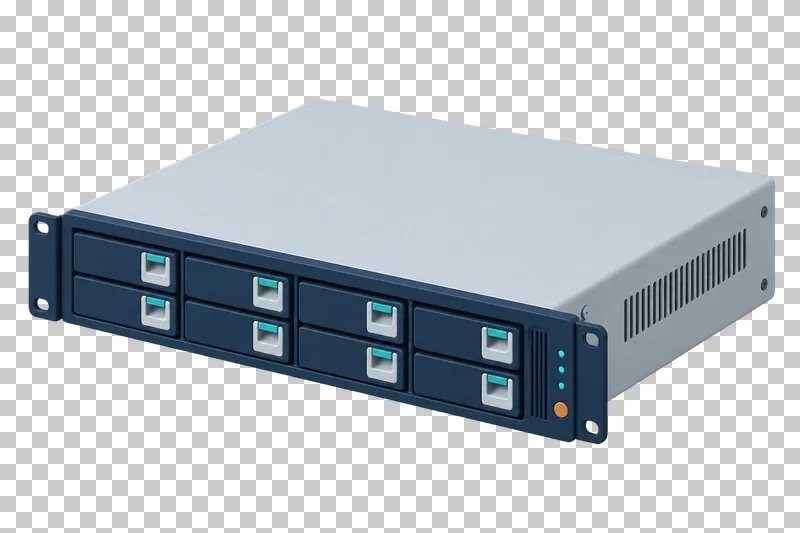

  • A 2U rack server with a light gray top, regular front drive bays and rack mounting ears.

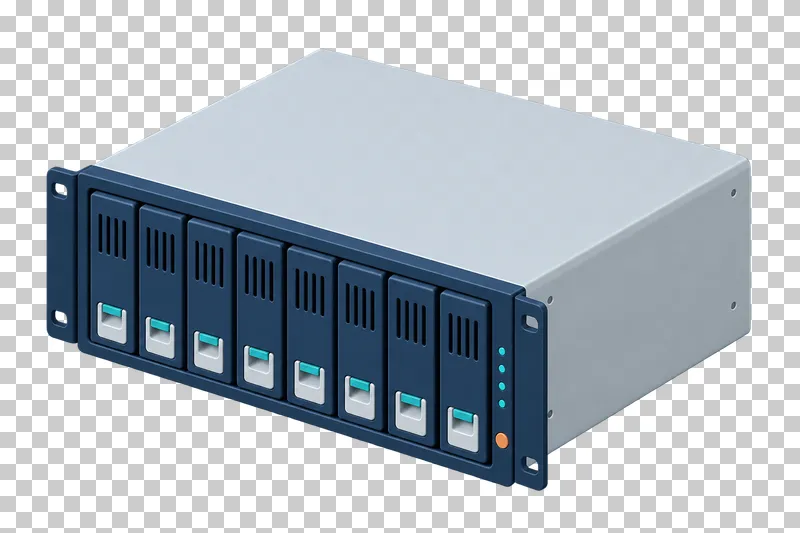

  • A light gray blade server enclosure filled with evenly spaced vertical navy modules.

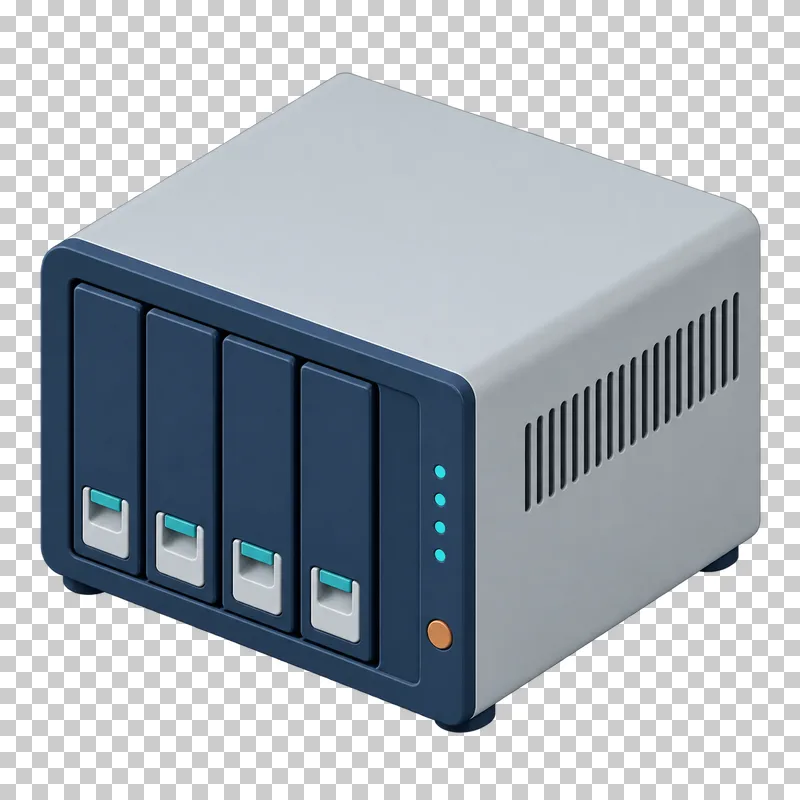

  • A four-bay NAS with four separate navy drive trays, small turquoise indicators and a vented light gray enclosure.

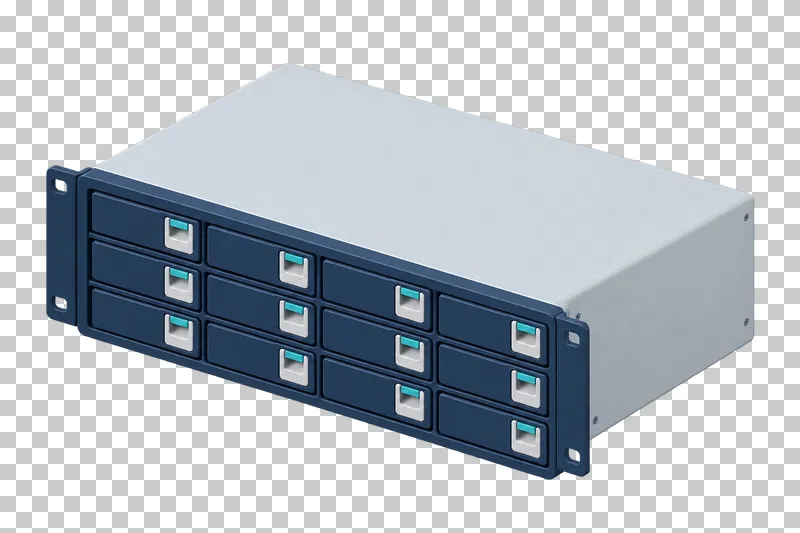

  • A rack disk array with regularly arranged navy drive trays, small indicators and a light gray top.

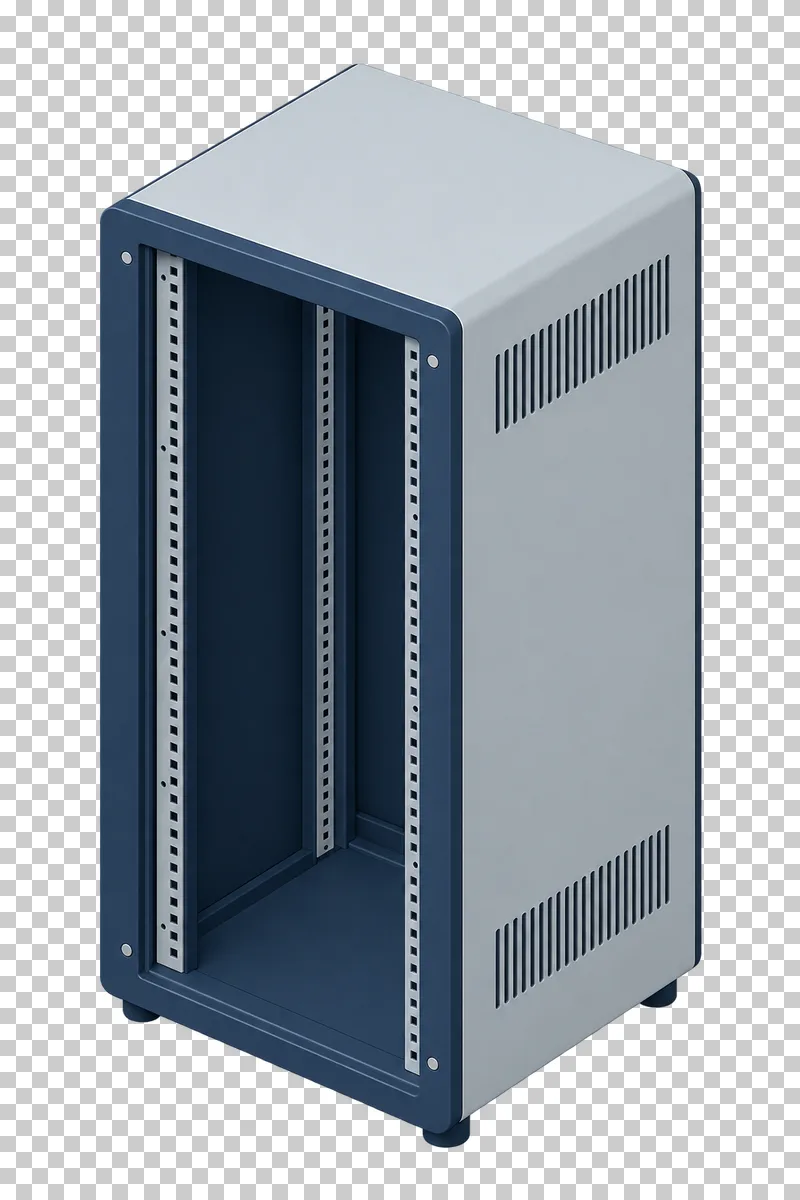

  • An empty light gray rack cabinet with an open front, straight navy mounting rails and side vents.

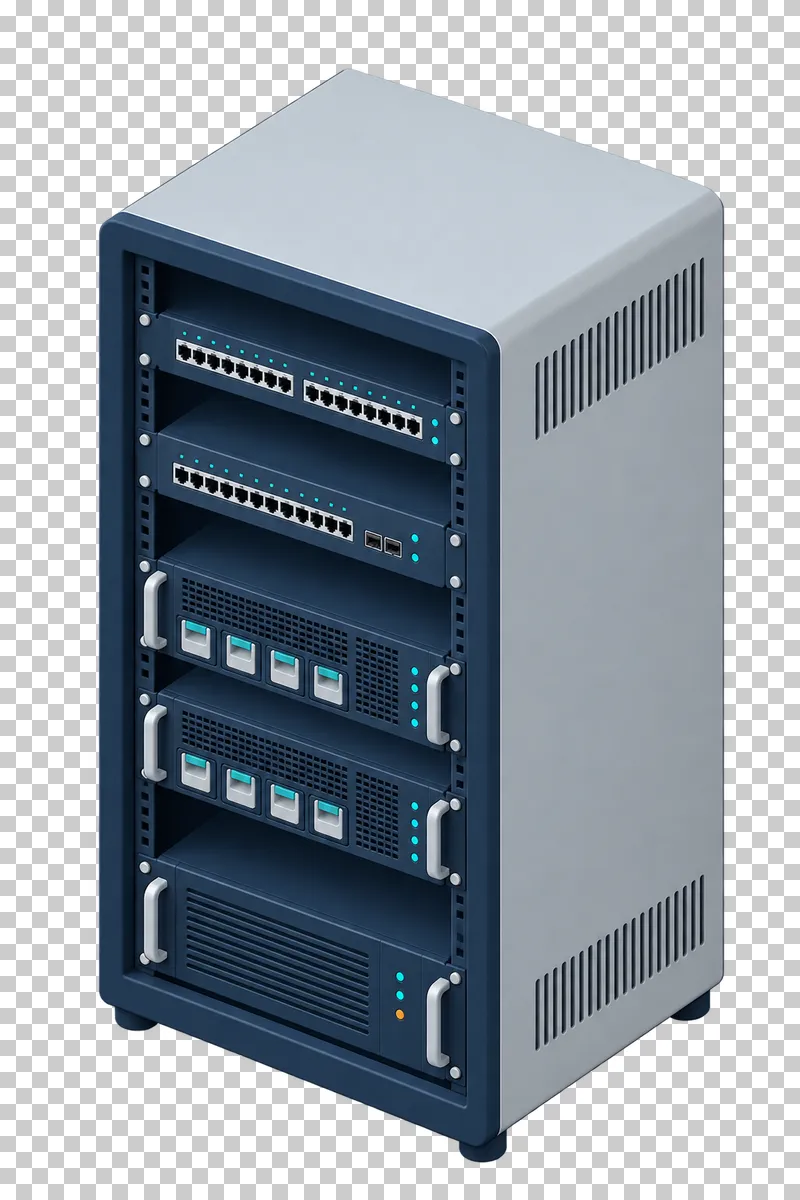

  • An open-front rack cabinet with network and server devices mounted in regular horizontal rows.

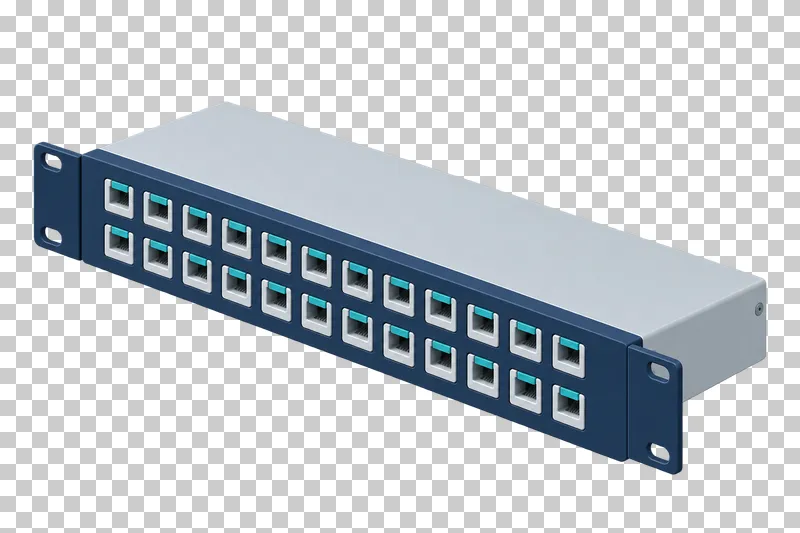

  • A navy rack patch panel with evenly spaced Ethernet sockets and light gray mounting ears.

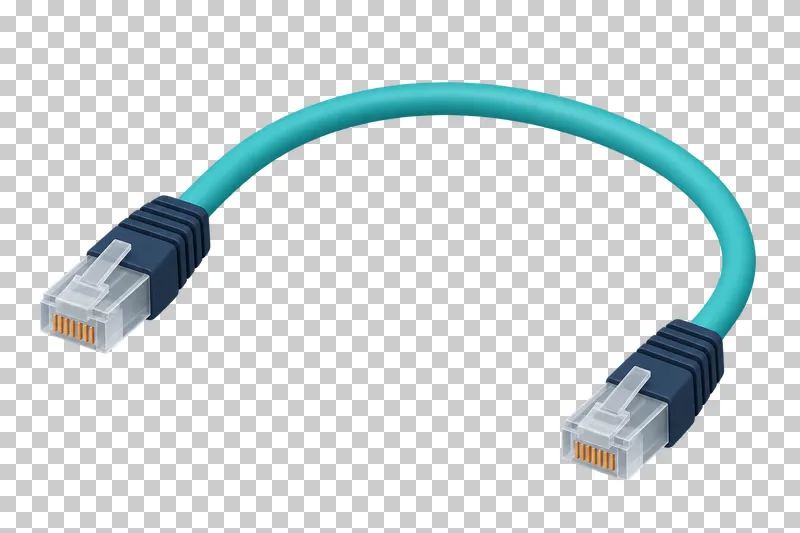

  • A complete turquoise Ethernet cable arranged in an arc with an RJ45 plug at each end.

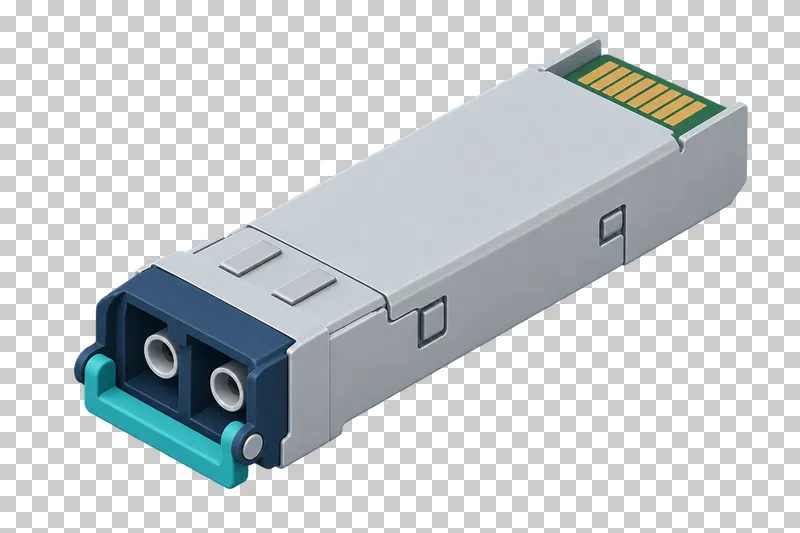

  • A slim light gray SFP transceiver with a turquoise optical end and a small pull latch.

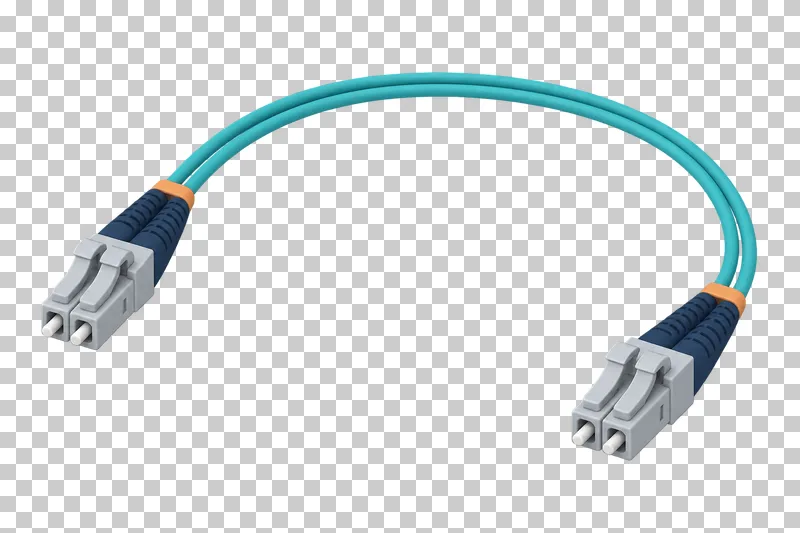

  • A complete turquoise fiber optic patch cord in a smooth arc with both optical connector ends visible.

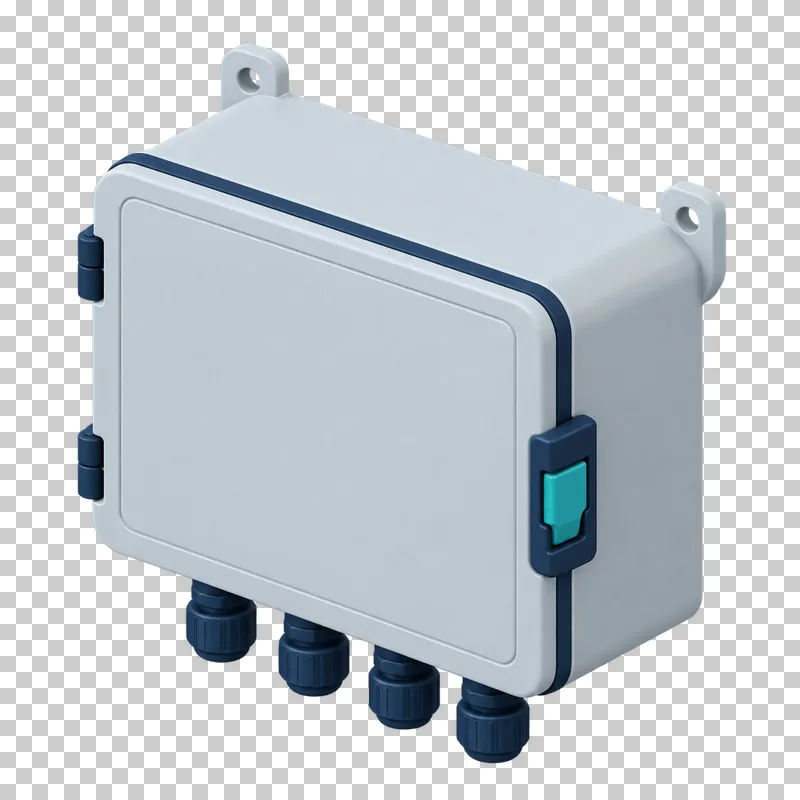

  • A light gray fiber termination box with a navy edge, recessed front panel and orderly cable entry points.

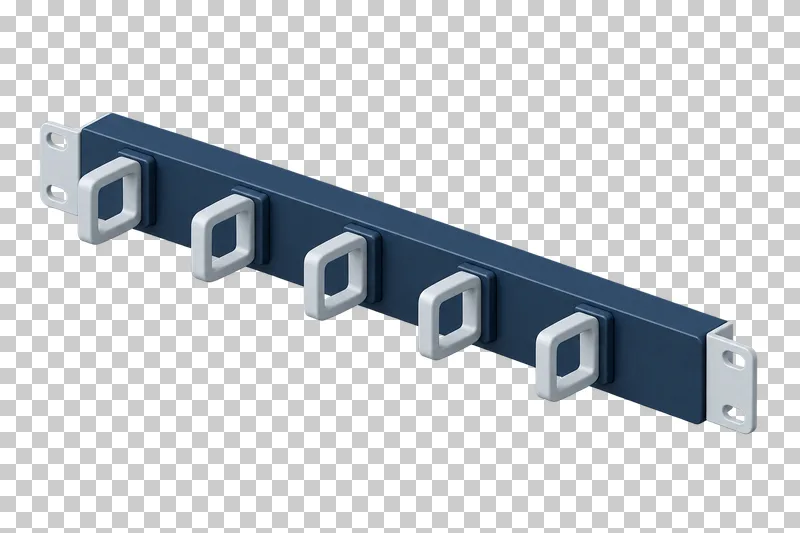

  • A navy horizontal rack cable manager with regularly spaced cable guides and light gray mounting ears.

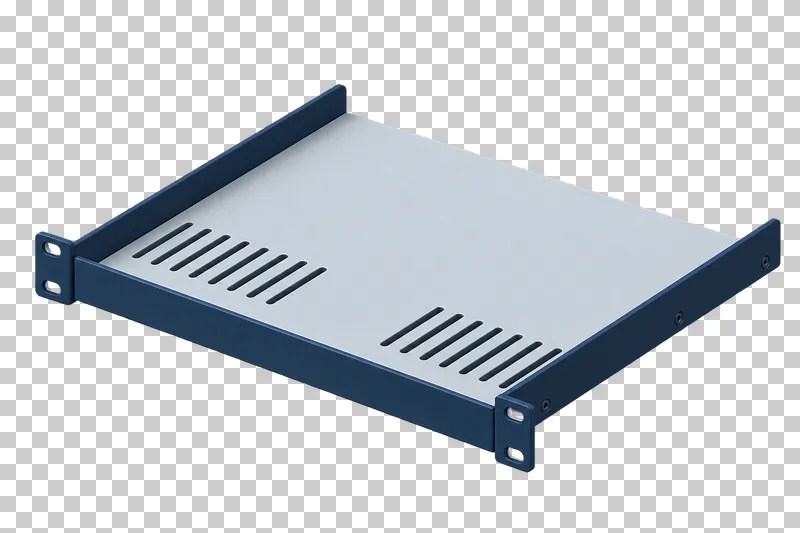

  • An empty light gray rack shelf with a navy frame, raised side edges and a regular perforation pattern.

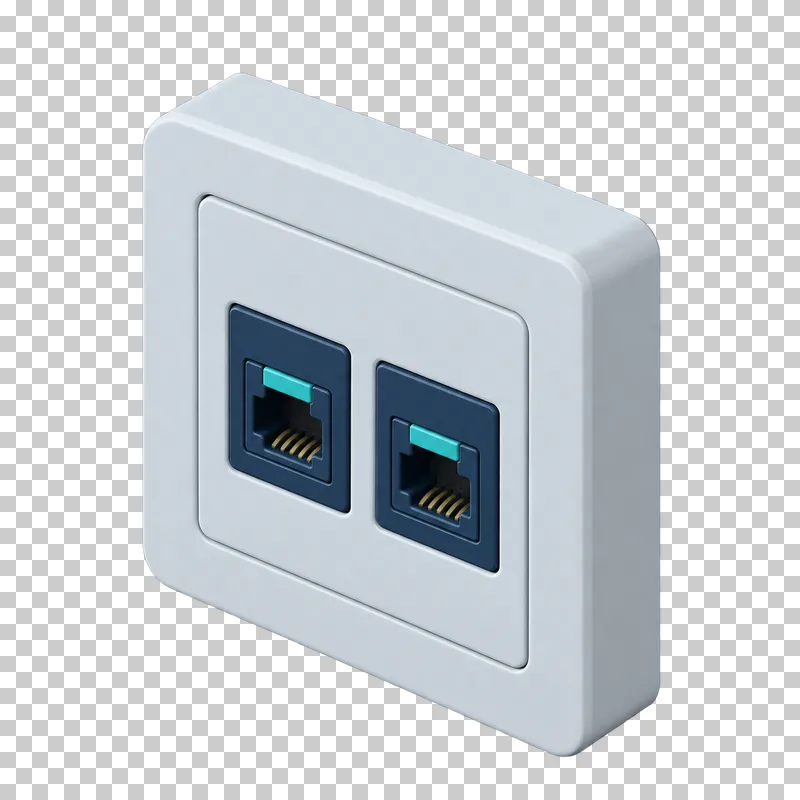

  • Two navy Ethernet sockets set side by side in a light gray wall outlet frame.

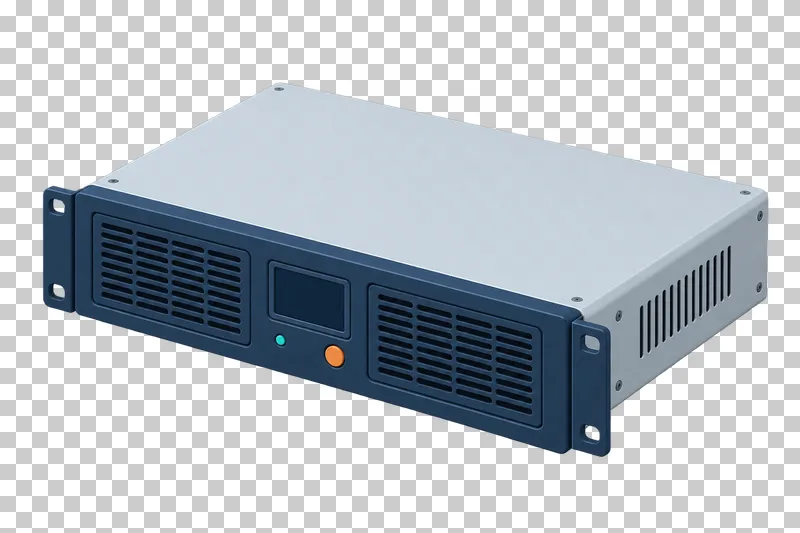

  • A rack UPS with a navy vented front, a blank dark display and light gray mounting ears.

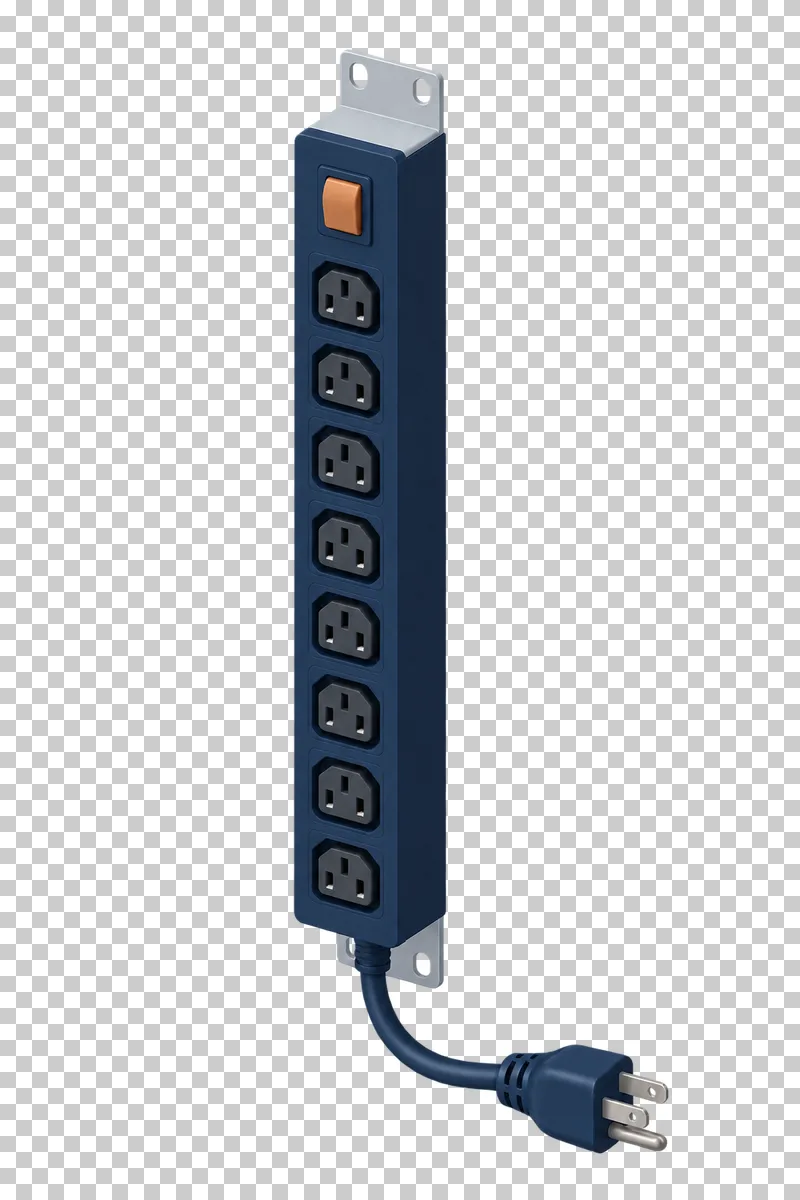

  • A vertical navy PDU with evenly spaced power outlets and a complete short input cable and plug.

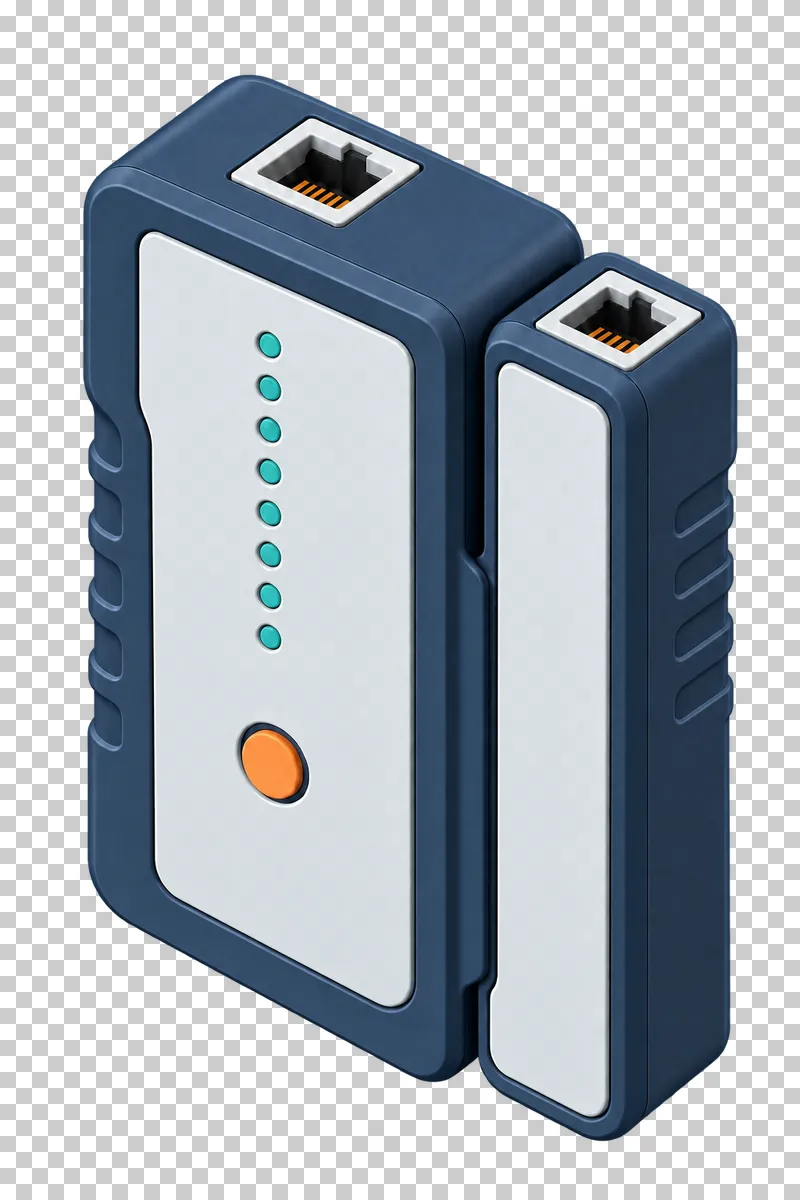

  • A light gray network cable tester with a matching remote unit, top sockets and regular turquoise indicators.

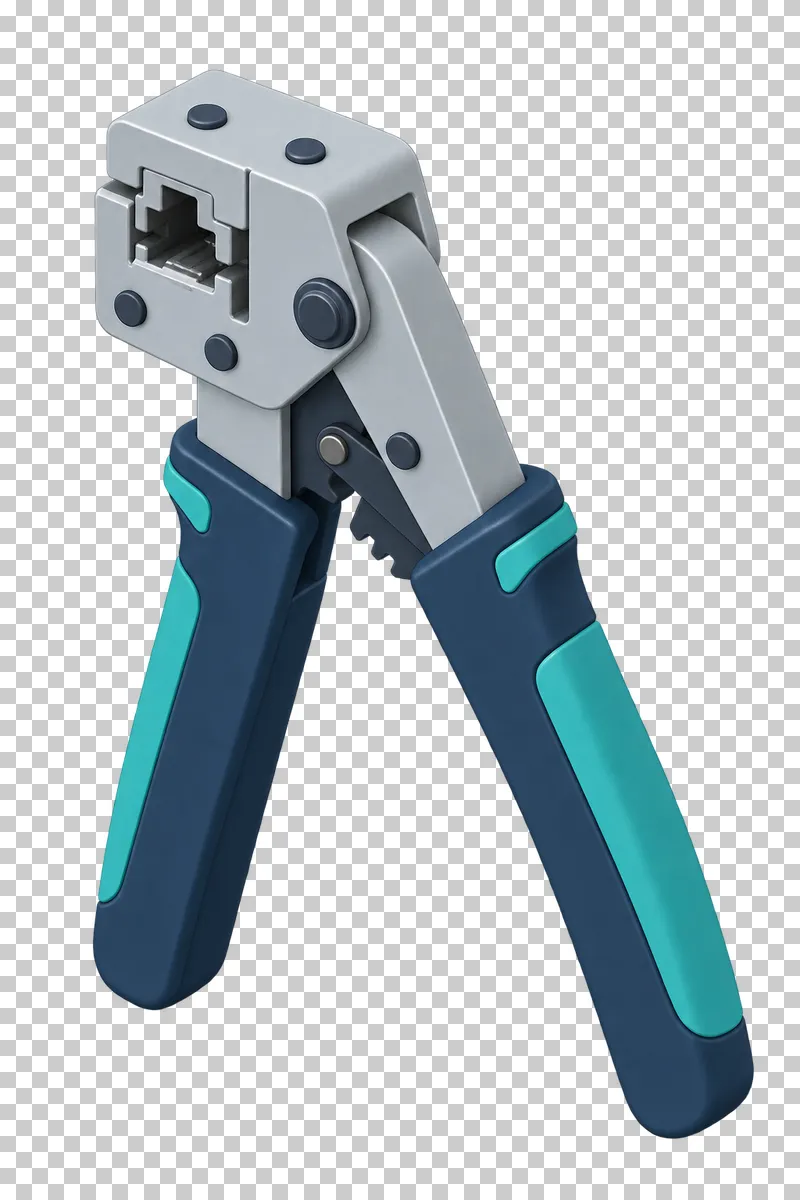

  • An RJ45 crimping tool with a shaped light gray metal head and navy handles with turquoise grips.

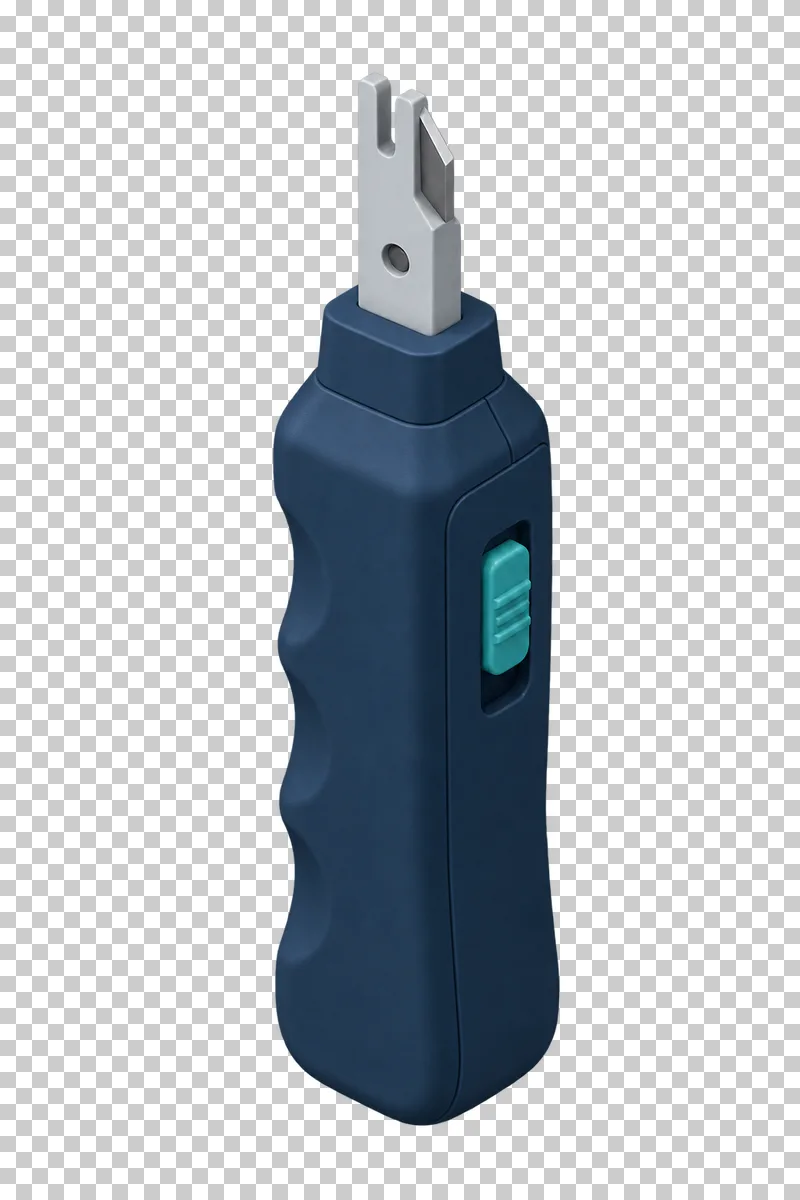

  • A navy and light gray punch-down tool with a narrow metal working tip and a turquoise grip accent.

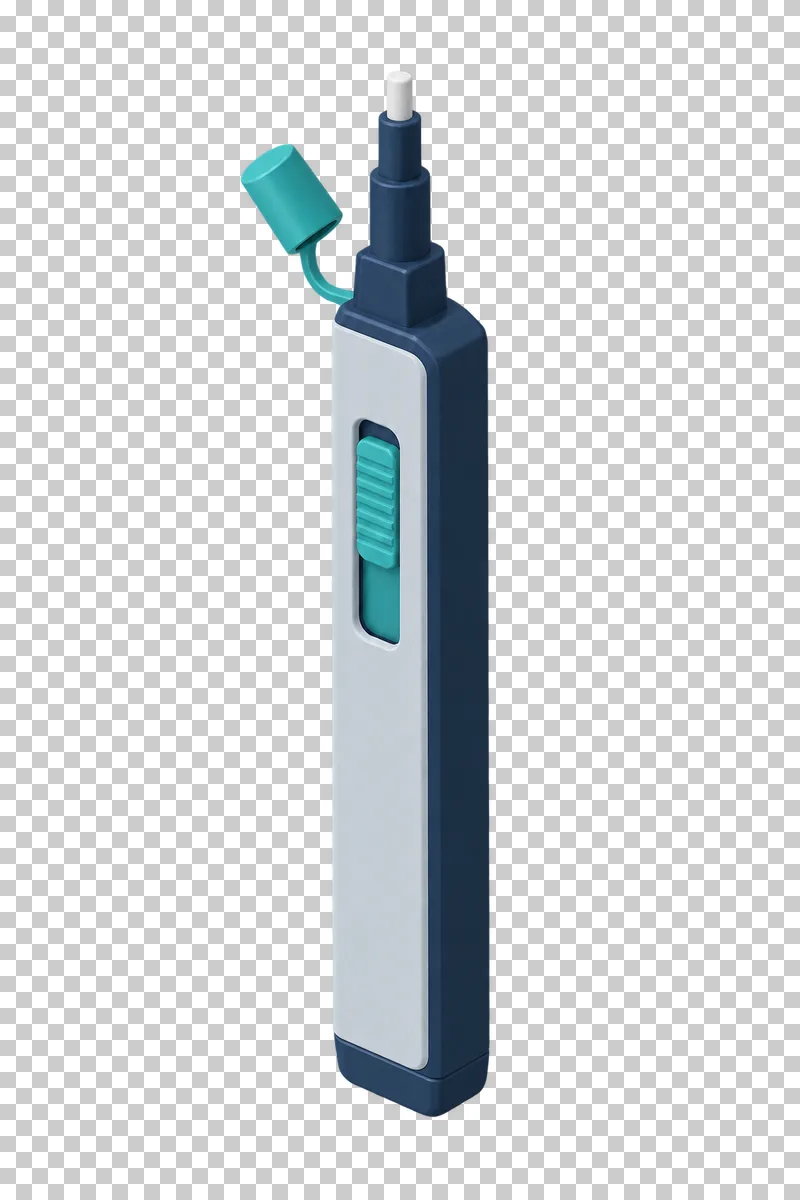

  • A slim navy and light gray fiber connector cleaner with a turquoise accent and a narrow cleaning tip.

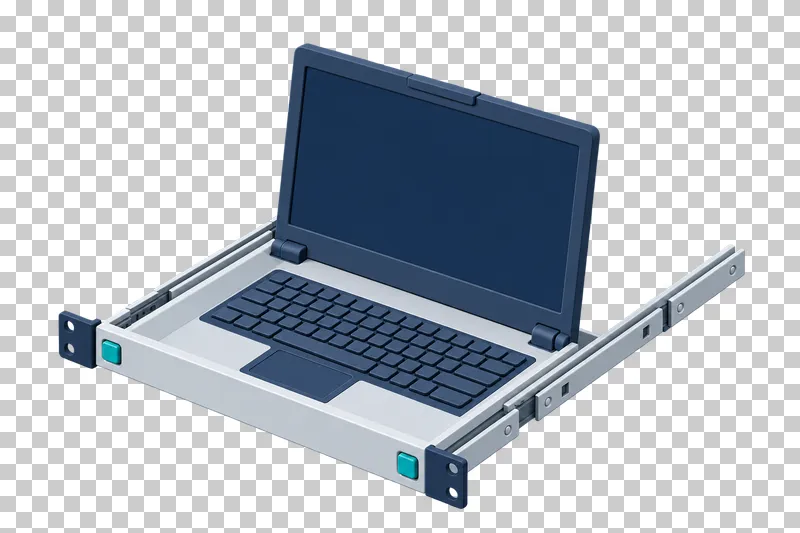

  • An extended rack console with two straight slide rails, a blank dark screen and a shaped keyboard with a spacebar.

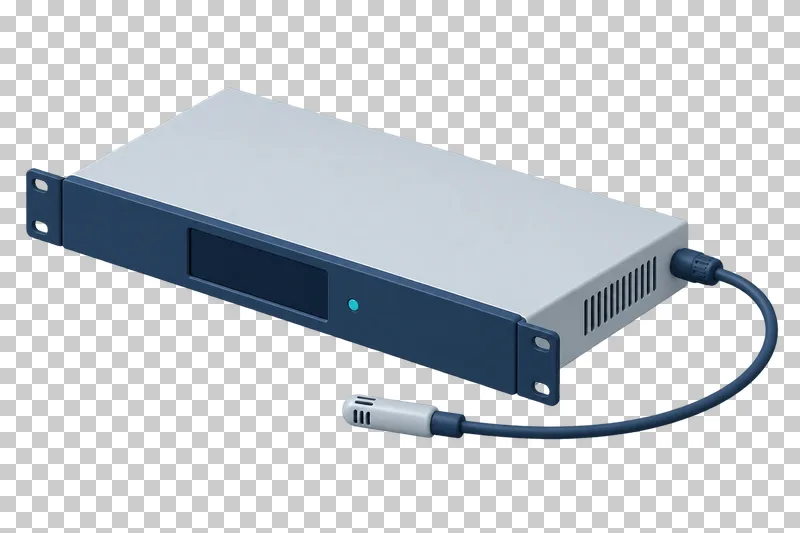

  • A slim rack temperature monitoring module with a blank dark display, small controls and mounting ears.
